STAINLESS QUALITY. DIGITAL INTELLIGENCE.

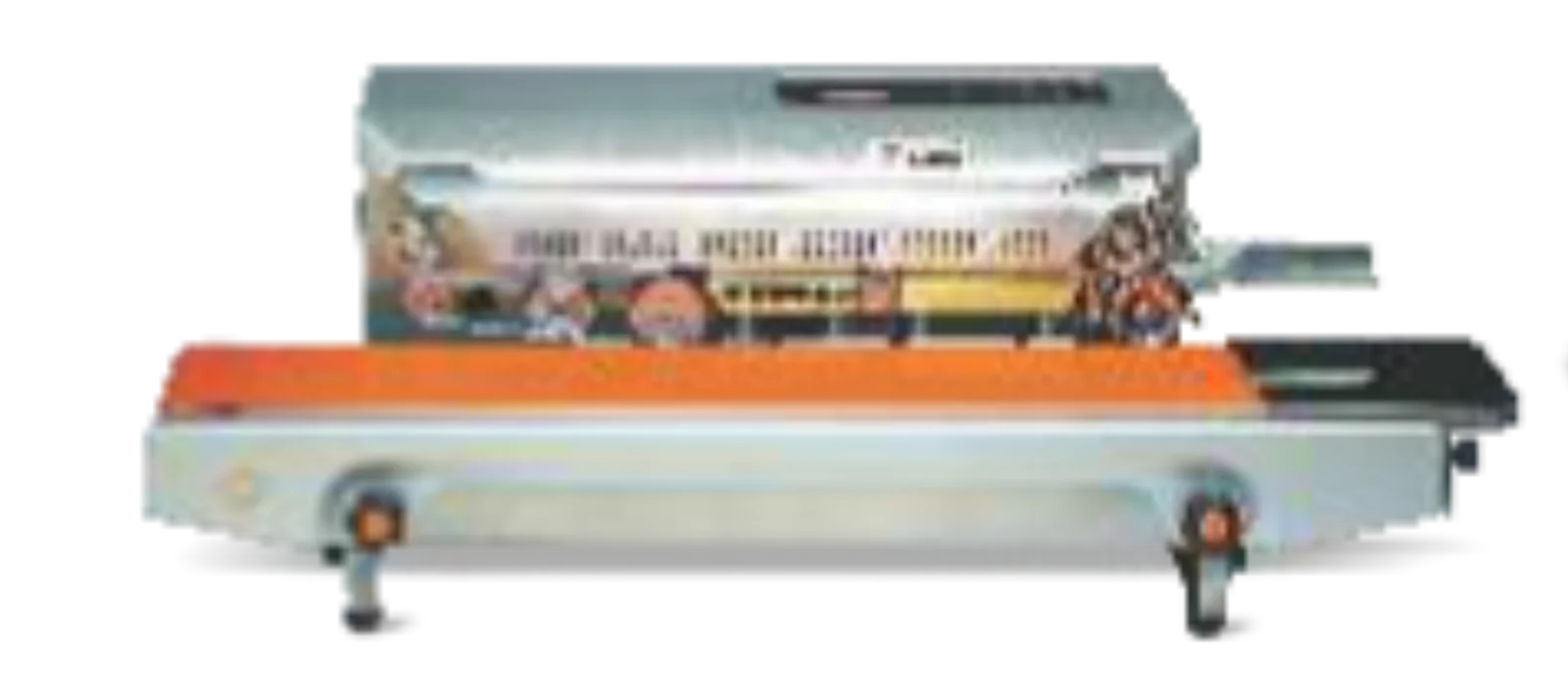

Stainless Steel ( SS ) models are offered in SMART SERIES of continues sealers. SS model is ideal for packing detergents, chemicals and other corrosive products. We have come out with SS models in SMART SERIES, one of the most durable continuous sealers around. Just perfect for packing chemicals and other corrosive materials. And just great for long-life and trouble free performance when it comes to packing any product.
TECHNICAL SPECIFICATIONS
Conveyor Load | Sealing Width (mm) | Type | Models Available | Power Consumption |
1 Kg x 3 Nos | 10 to 12 | Horizontal | Smart / Digital | 750W |
5 Kg x 3 Nos | 10 to 12 | Vertical | Smart / Digital | 800W |
10 Kg x 3 Nos | 08 to 10 | Vertical | Smart | 900W |

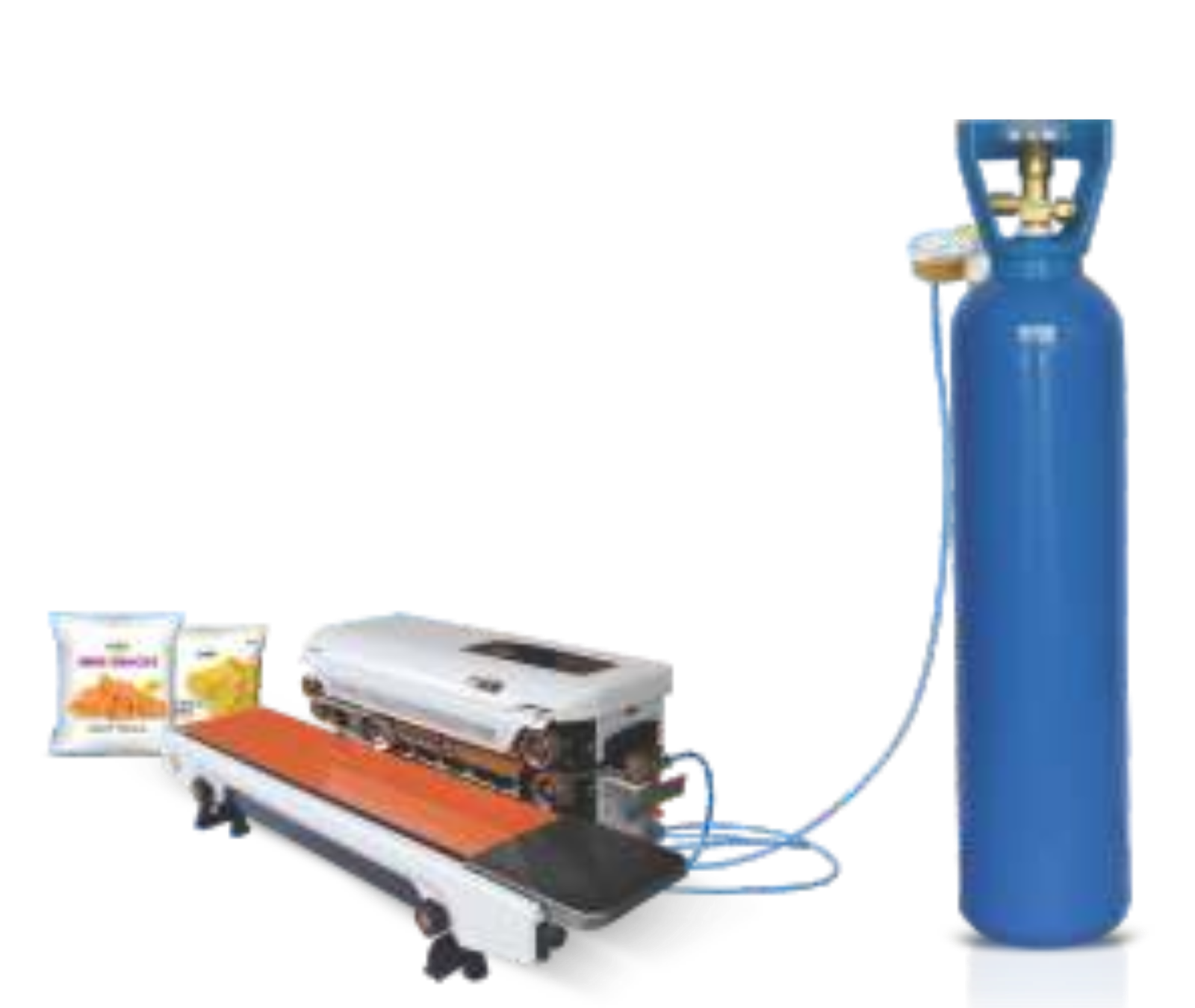

CS SERIES WITH GAS FLUSHING
Gas flushing Continuous Sealer is ideal for packaging of fried items like chips, mixture, nuts etc.. This sealer is provided with a temperature controller to control the sealing temperature and a variable speed drive for adjusting the sealing and conveyor speed. This model is recommended for laminated bags.
Standard model is horizontal, for vertical conversion it is required to get the optional vertical kit as extra part. The horizontal model is suitable for packing non spi lable items, while the vertical model is suitable for packing spi lable items, this model can carry a max. load of 3Kg at a time
Accessories Required: This machine requires nitrogen or suitable inertgases in a cylinder with air pressure regulator.
*Accessories shown are not part of standard equipment (Gas Cylinder & Regulator)
* Vertical conversion kit/parts need to purchase seperately
TECHNICAL SPECIFICATIONS
- Voltage: 240V / 50Hz
- Power: 750W
- Sealing Speed: 14 m/min (at 240VAC input)
- Sealing Width: 10 mm to 12 mm
- Temperature Range: Room temperature to 350°C
- Maximum Conveying Load: 1 kg × 3
- Weight: 32 kg
- Gas Type: Nitrogen
- Compressed Air Requirement: 1–2 bar

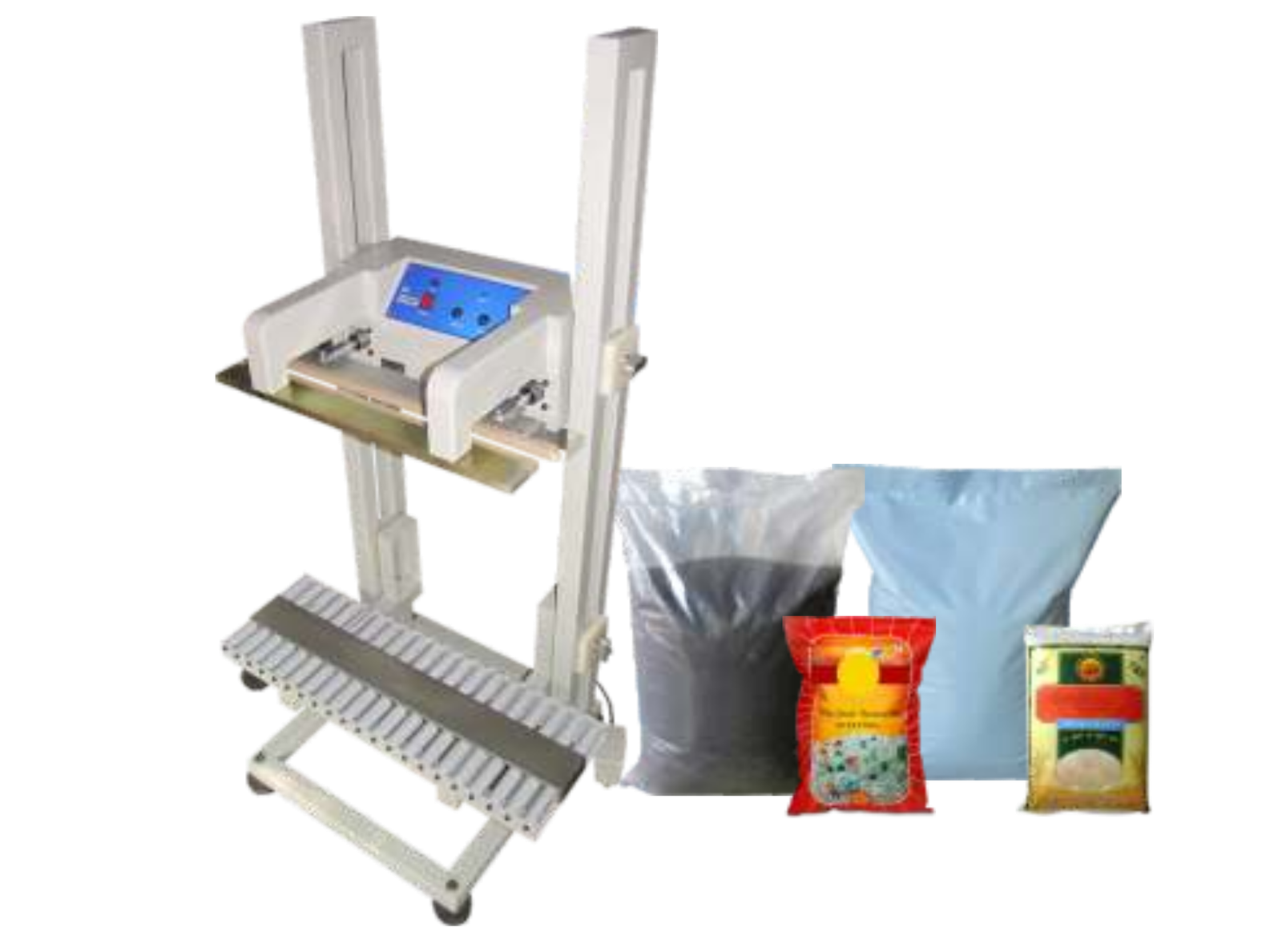

PNEUMATIC SEALER PS 900 / PS 650
Sepack PS 900 / PS 650 pneumatic sealers is suitable for sealing various plastic film bags and aluminum plastic laminated bags. Two standard model machines are available with maximum sealing length of 900mm or 650 mm and maximum loading of 80Kg. The sealing operation canbe controlled using foot switch. This is ideal for bulk bags needs high sealing quality.

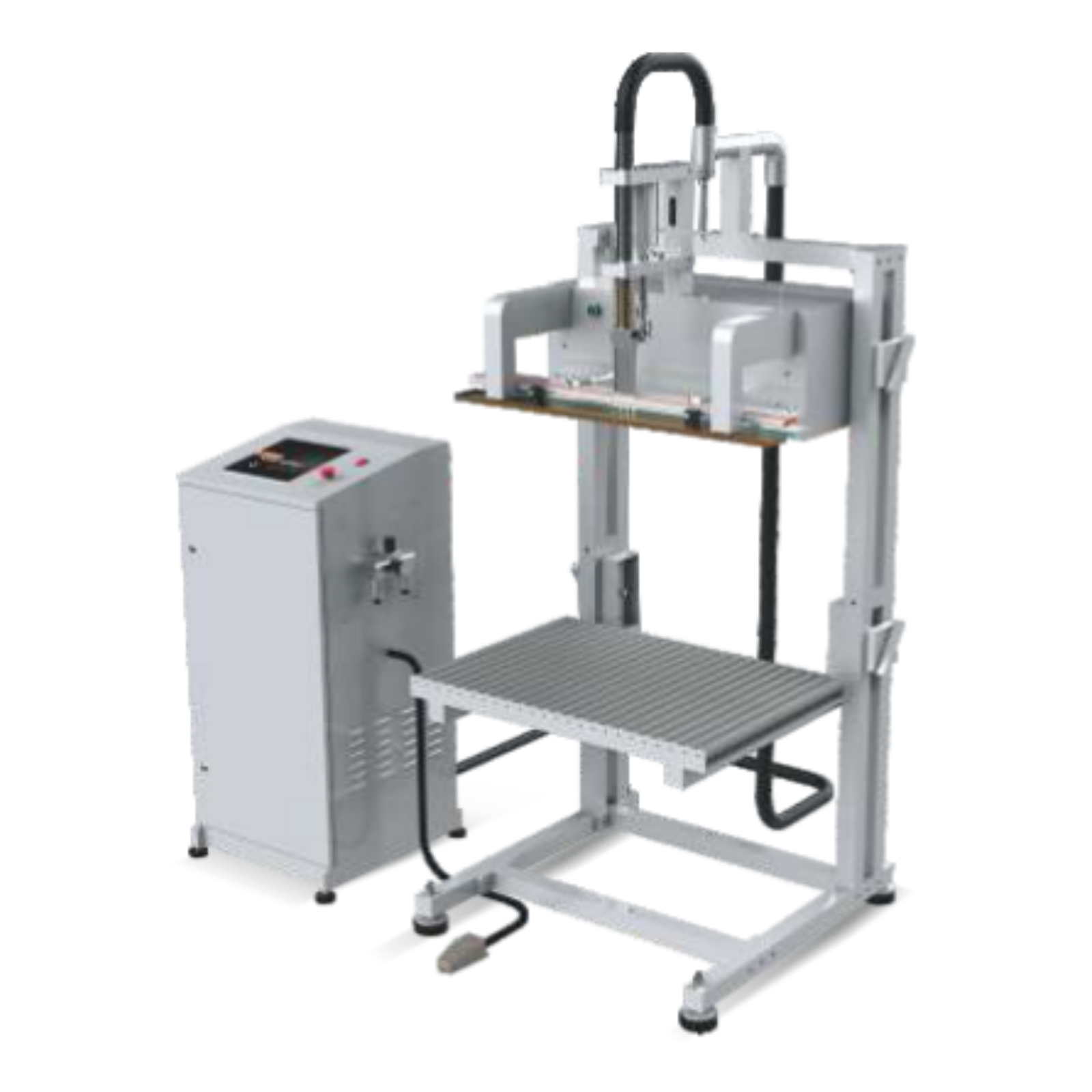

OPEN VACUUM / GAS FLUSHING SEALER - 900 HVPN
Modification of headspace atmosphere help perishables to increase the shelf stability. Vacuum packing is ideal for compacting, increase stack ability, arrests product movement within. Prevents oxidation, keep aroma, prevents moisture entry – helps to remain fresh. Ideal for dryfruits, perishable food stuff, pharma products, chemical powders, metal powders etc.

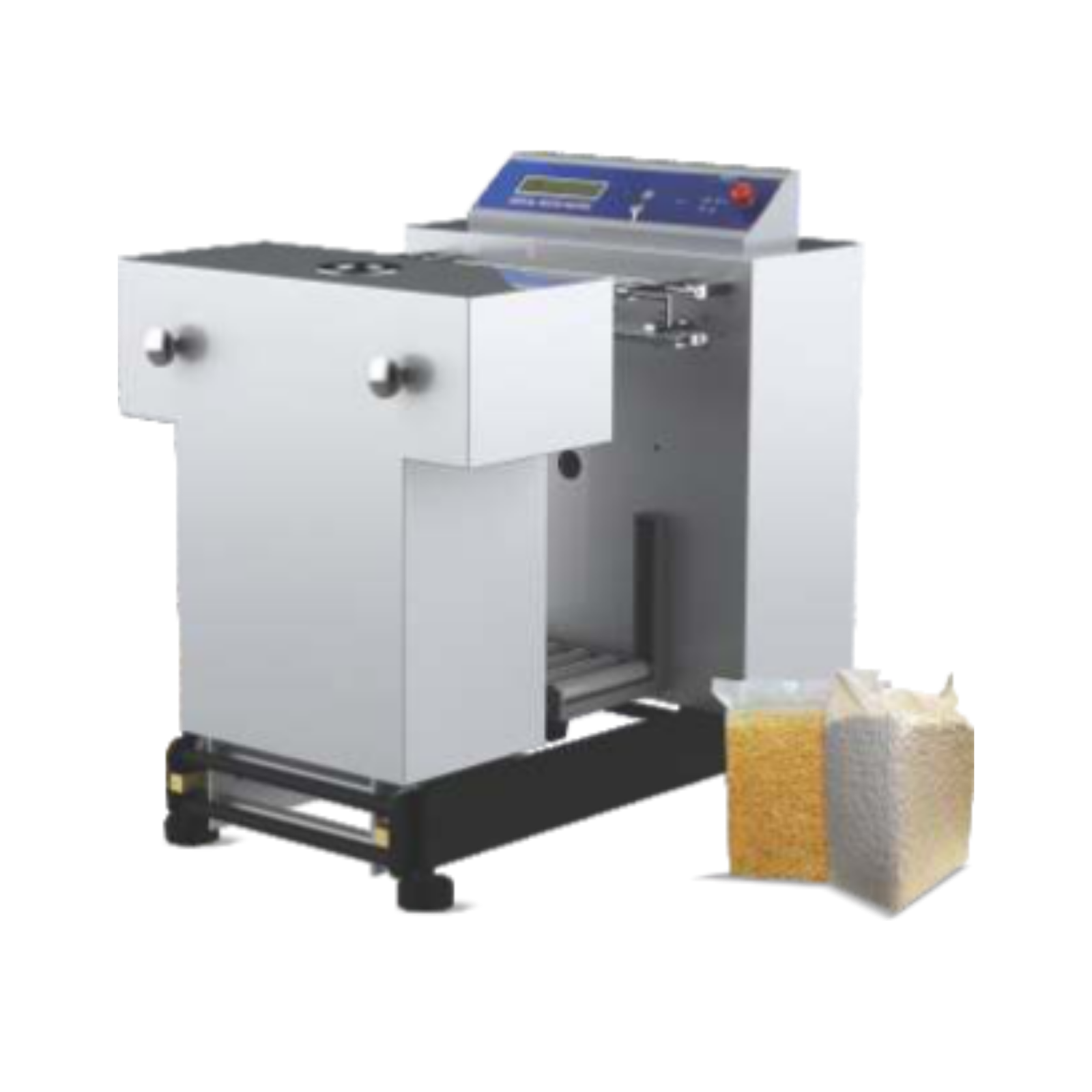

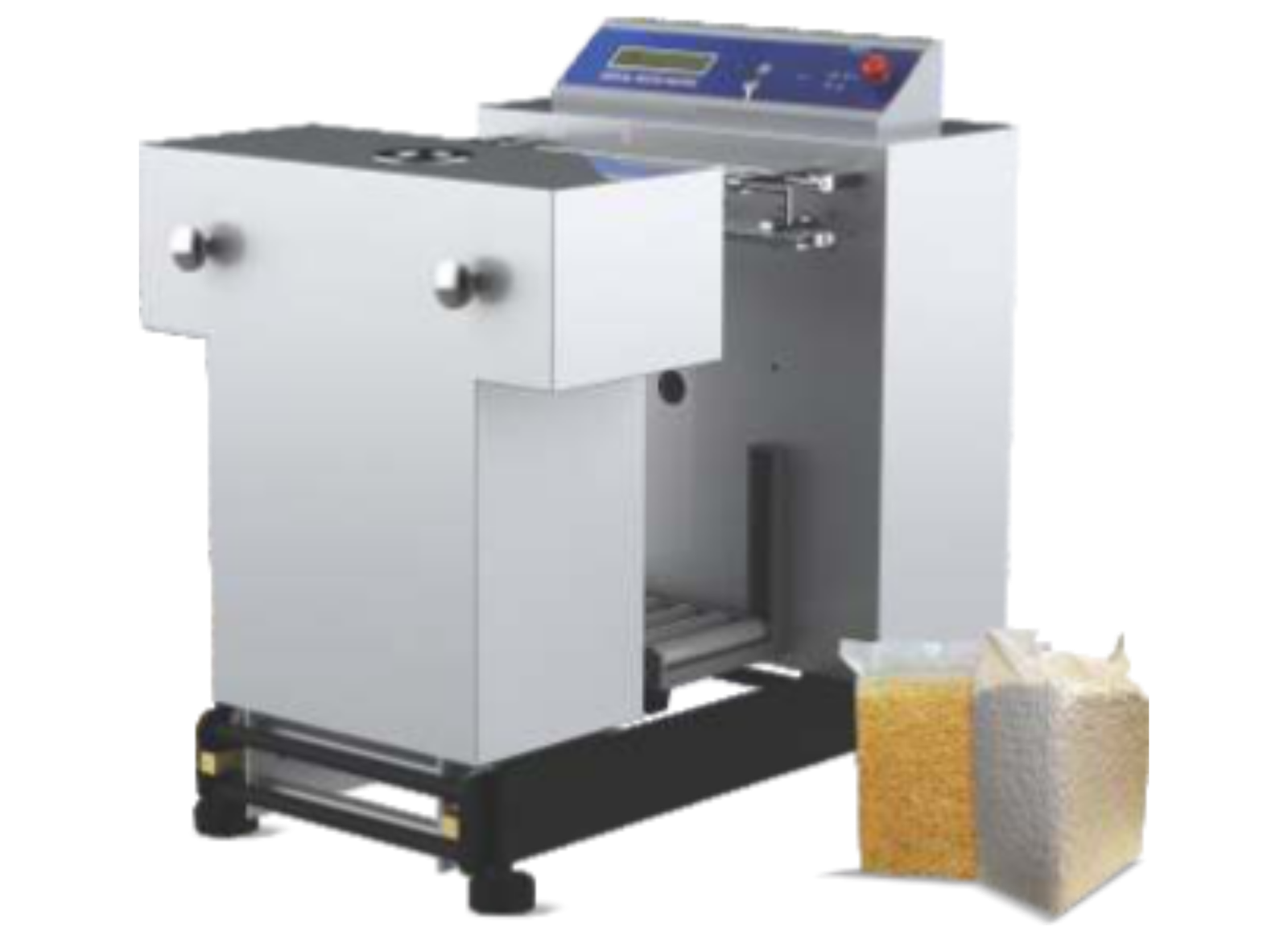

VERTICAL VACUUM PACKAGING MACHINE
Sepack vertical vacuum packaging system is an ideal equipment for “BulkPackaging” requirements. It has applications in packaging of Cashewnuts, Tea, Rice, Peanuts, Seeds, Dry Fruits etc. Twostandard models are available for Cashew and Tea industry. customised models are developed as per customer requirement for other applications

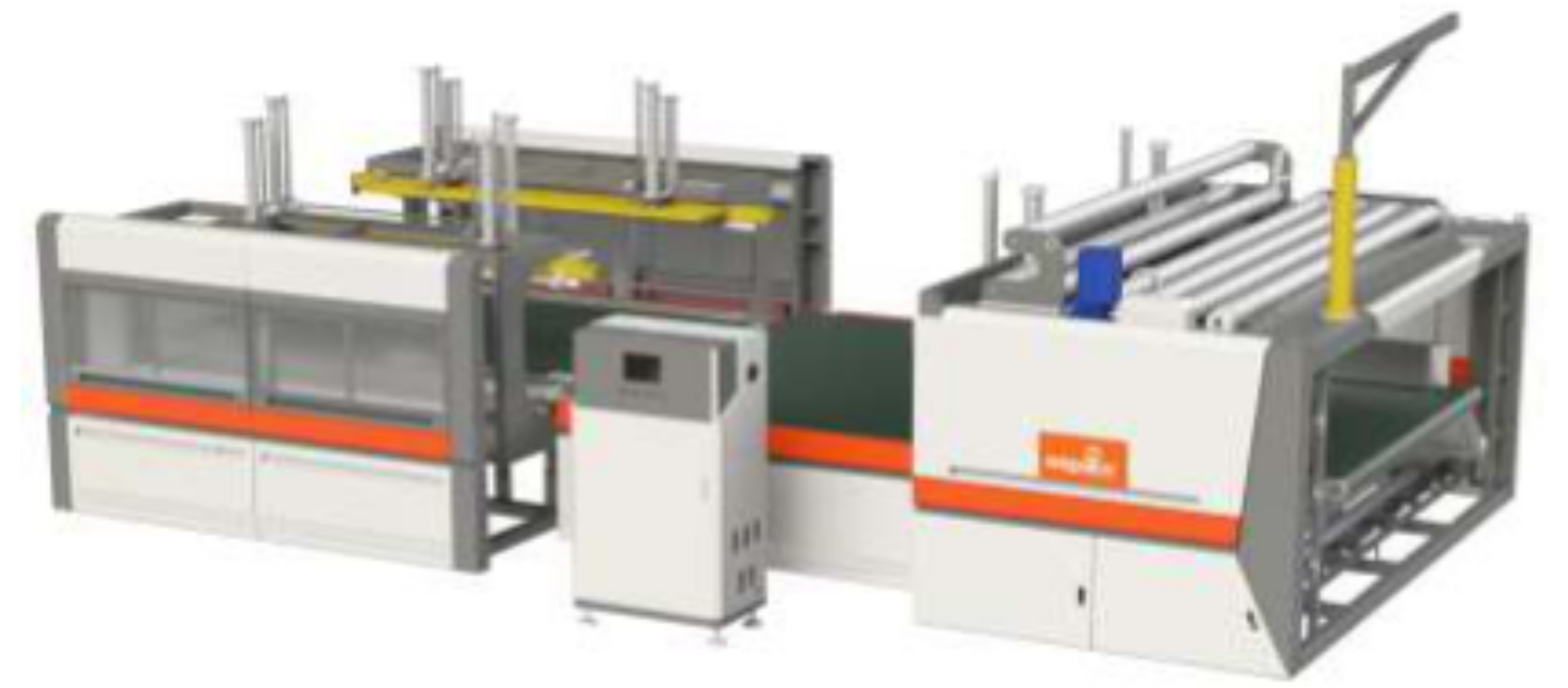

Automatic Mattress Wrapping Machine
- Model: SEPACK – Ng822
- Mattress Height: 100 – 400 mm
- Mattress Width: 800 – 2200 mm
- Mattress Length: 1800 – 2200 mm
- Packing Speed: 90 – 120 pcs/hour
- Packing Material: PE / PVC
- Maximum Material Size: ≤ 2950 mm
- Power Supply: Three Phase, 415V, 50Hz
- Power: 20 kW
- MOC: MS Powder Coated
- Compressed Air Requirement: 6 bar
- Label Roll OD: ≤ Ø 330 mm
- Maximum Film Roll Weight: 100 kg

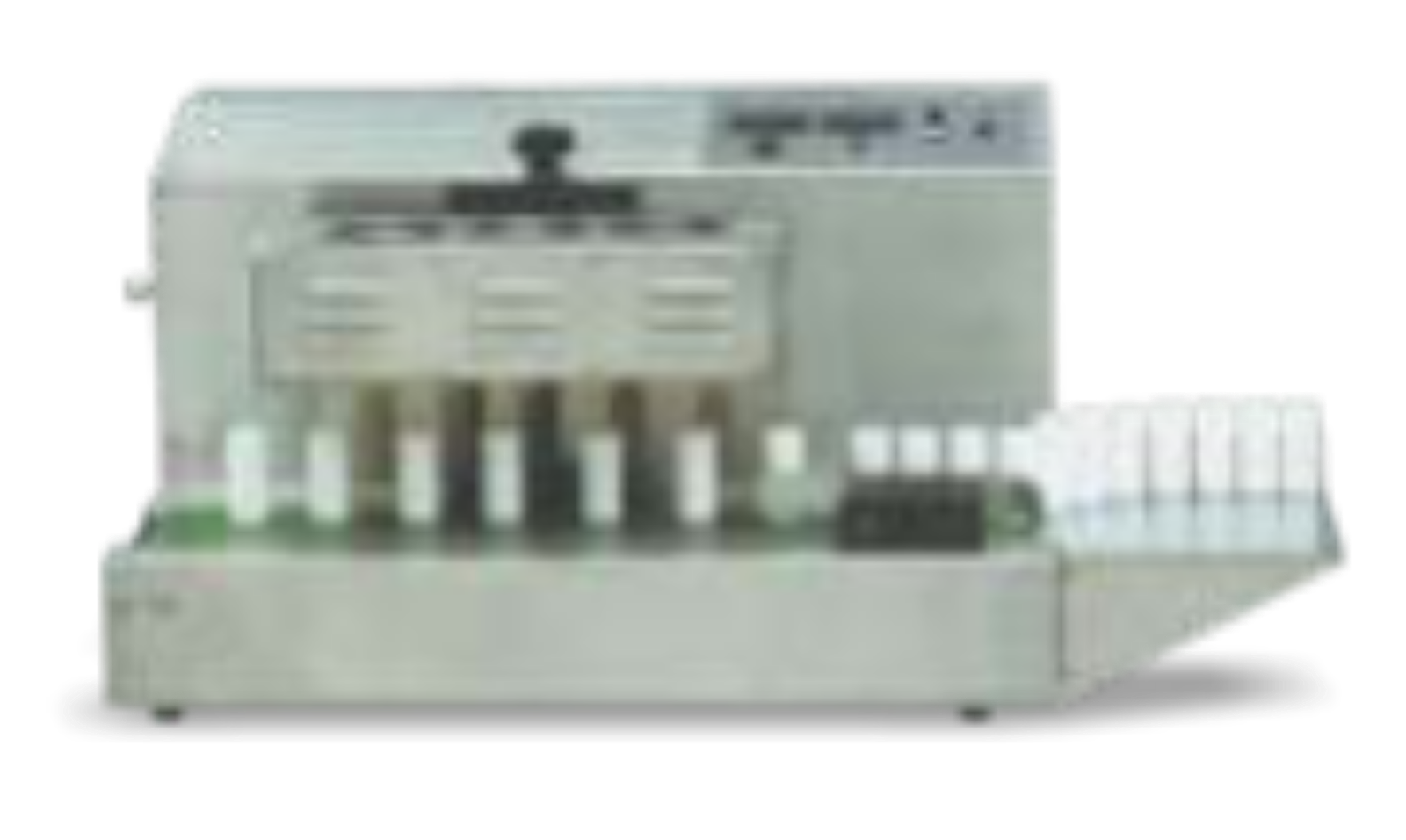

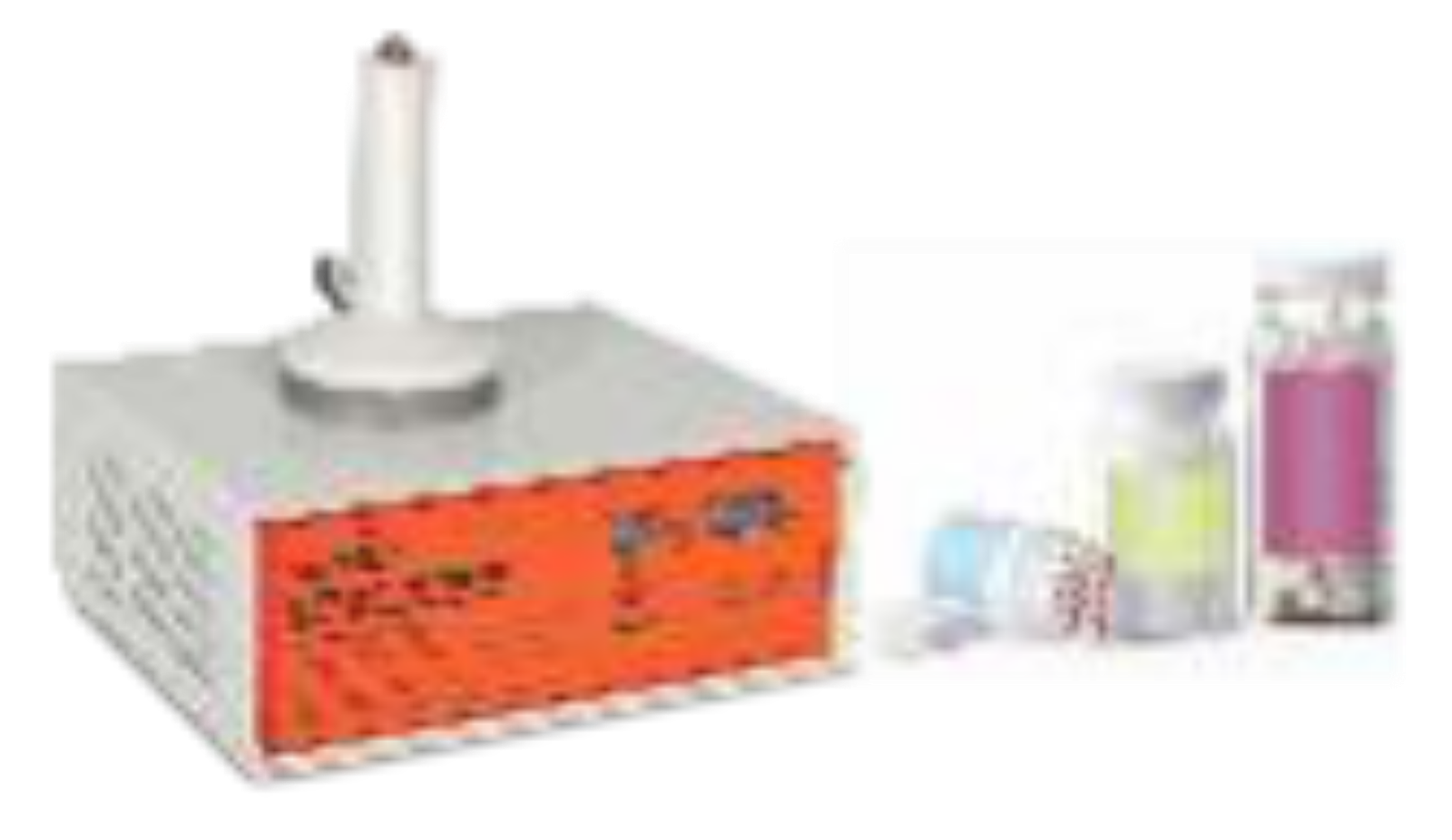

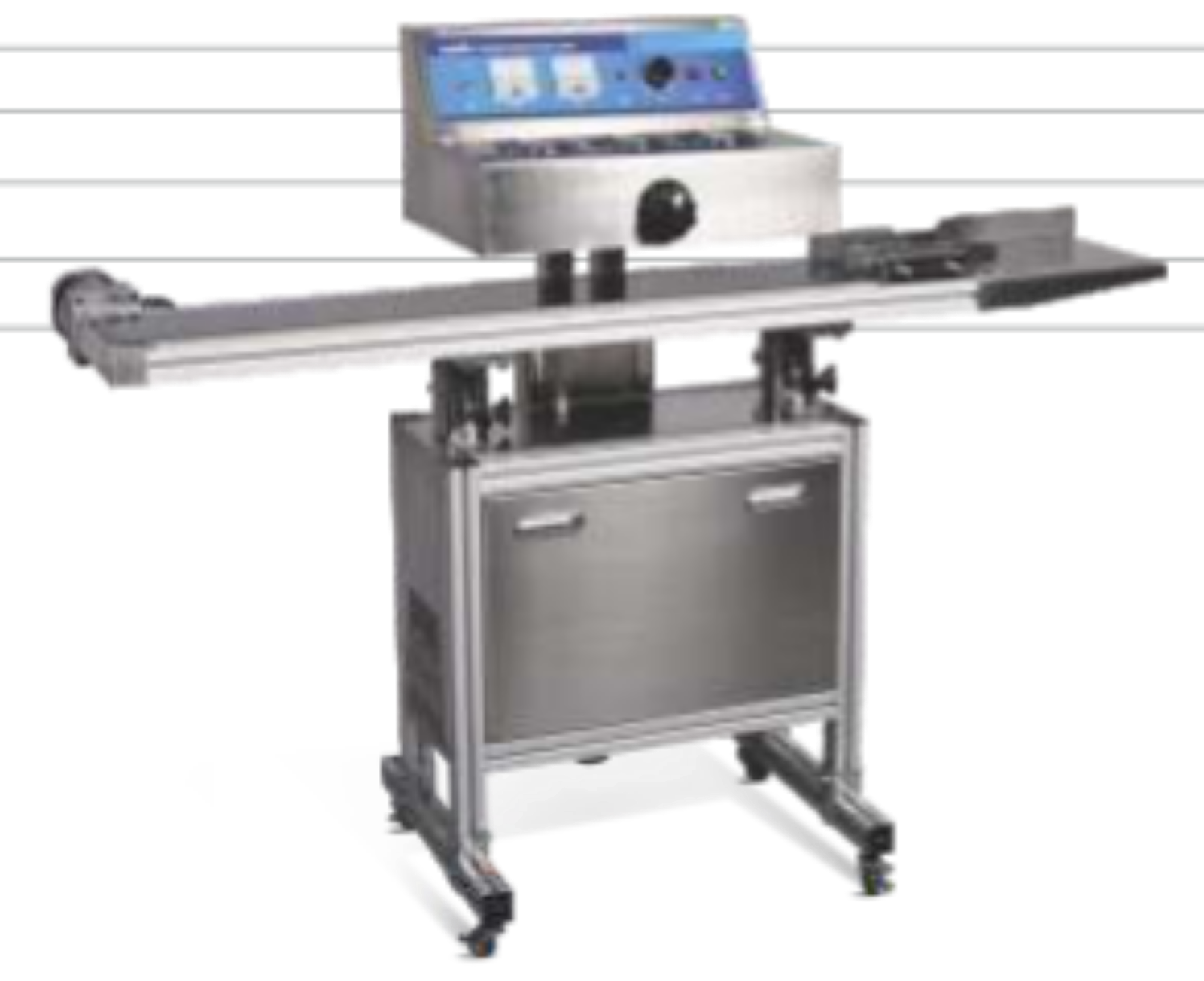

INDUCTION SEALERS
Induction sealers are used for hermetically sealing the plastic & glass bottle caps with aluminum foils. This makes the bottles leak- proof & tamper evident and offers extended shelf life. Induction sealers are widely used in Pharmaceutical, Chemical, Lubricant, Cosmetic and Food industries.
TECHNICAL SPECIFICATIONS
Parameter | IS 130C | IS 120C | IS 120P | IS 80P |
Input Voltage | AC220V±10 %,50Hz | AC220V±10 %, 50Hz | AC220V±10 %, 50Hz | AC220V±10 %, 50Hz |
Input Current | <10A | <10A | Up to 7A | Up to 4A |
Sealing Current | Static < 2A, Dynamic < 10A | Static < 2A, Dynamic < 10A | Static ≤ 0.1A | Static ≤ 0.1A |
Operating frequency | 70KHz – 80KHz | 70KHz – 80KHz | 50KHz (±20 %) | 50KHz (±20 %) |
Output power | ≤2000W | ≤2000W | 1000W | 500W |
Enclosure protection class | IP2I | IP2I | IP2I | IP2I |
Sealing diameter | Φ20mm – Φ130mm (Optimal diameter: Φ30mm – Φ120mm) | Φ20mm – Φ130mm (Optimal diameter: Φ30mm – Φ120mm) | Φ60 – Φ120mm Applicable film materials: Special inductive film and aluminum foil compound film (vacuum aluminized film is not applicable) | Φ20 – Φ80 mm Applicable film materials: Special inductive film and aluminum foil compound film (vacuum aluminized film is not applicable) |
Bottle height | 40mm – 400mm | 40mm – 300mm | —- | —- |
Transportation diameter | ≤Φ200mm | ≤Ф200mm | —- | —- |
Sealing speed | 2 to 12m/min (depends on bottle size, material, and sealing membrane) | 2 to 12 m/min (depends on bottle size, material, and sealing membrane) | —- | —- |
Conveyor unit bearing load | ≤20Kg | ≤20Kg | —- | —- |
External dimensions | 1550mm × 550mm × 1350mm | 1150mm × 600mm × 400mm | 340mm × 290mm × 130mm | 340mm × 290mm × 130mm |
Weight | 70Kg | 40Kg | 8kg | 8kg |

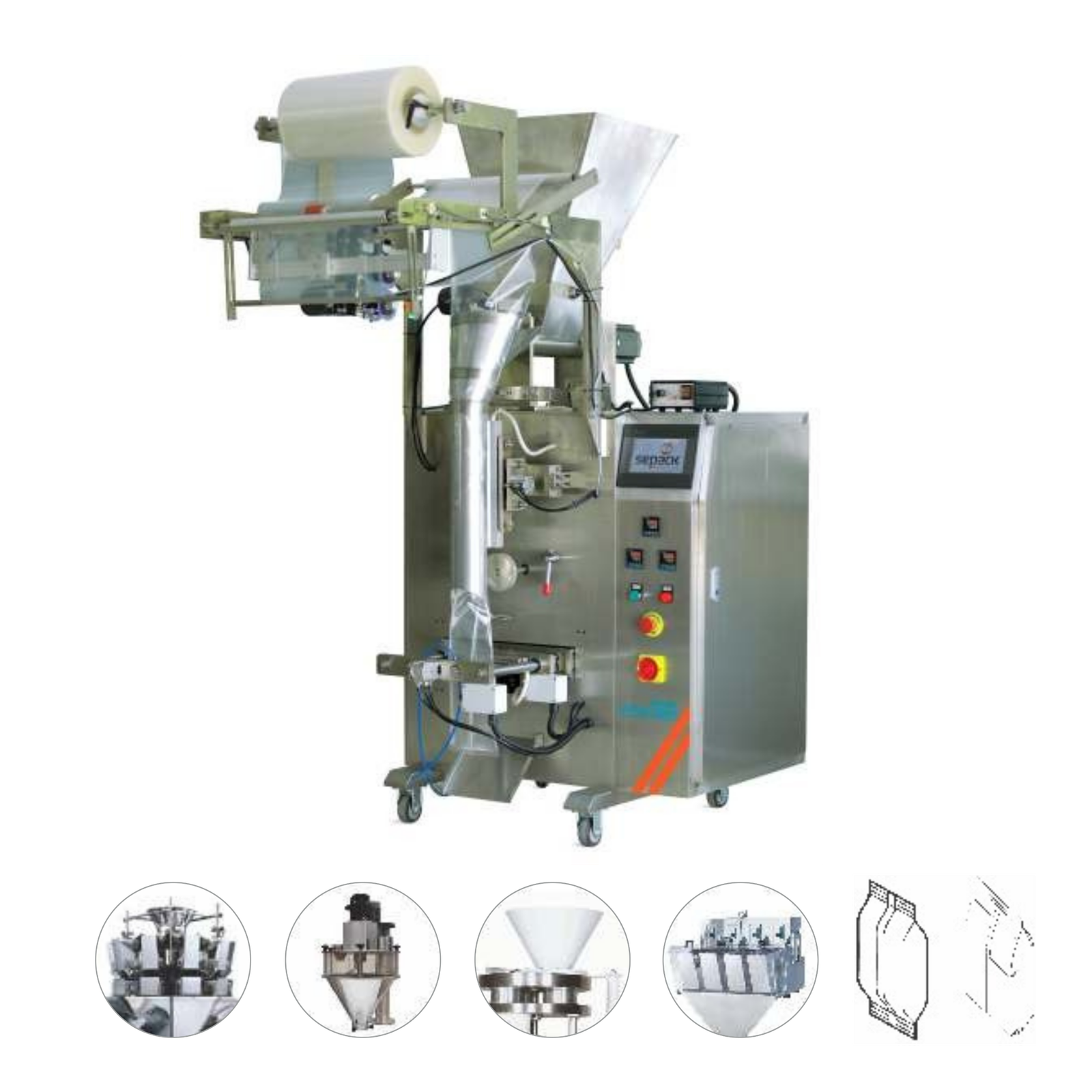

FFS MACHINE ECONOMY SERIES
Model | Sepack VFFS e 110C | Sepack VFFS e 110IP | Sepack VFFS e 20C | Sepack VFFS e 20HP | Sepack VFFS e 20LW2H/4H/6H |
Pouch Size | Width 150 mm & Length 200 mm | Width 150 mm & Length 200 mm | Width 200 mm & Length 300 mm | Width 200 mm & Length 300 mm | – |
Measuring Device | Volumetric Cup | Inclined Auger & Screw | Volumetric Cup | Horizontal Screw | Linear Weigher 2/4 Head (2.5L / 6L Bowl) |
Filling Range | 20 g – 100 g | 20 g – 100 g | 100 g – 1 kg | 100 g – 1 kg | 50 g – 1 kg |
Products | Granules (uniform size) | Powders | Granules (uniform size) | Powders (non-sticky) | Free flowing granules |
Film Pulling | Stepper Motor Rollers | Stepper Motor Rollers | Stepper Motor Rollers | Stepper Motor Rollers | Stepper Motor Rollers |
HMI | Available | Available | Available | Available | Available |
Sealing | Vertical & Horizontal – Pneumatic | Vertical & Horizontal – Pneumatic | Vertical & Horizontal – Pneumatic | Vertical & Horizontal – Pneumatic | Vertical & Horizontal – Pneumatic |
Speed | 15 – 55 (depending on product) | 15 – 55 | 15 – 55 | 15 – 55 | 15 – 55 |

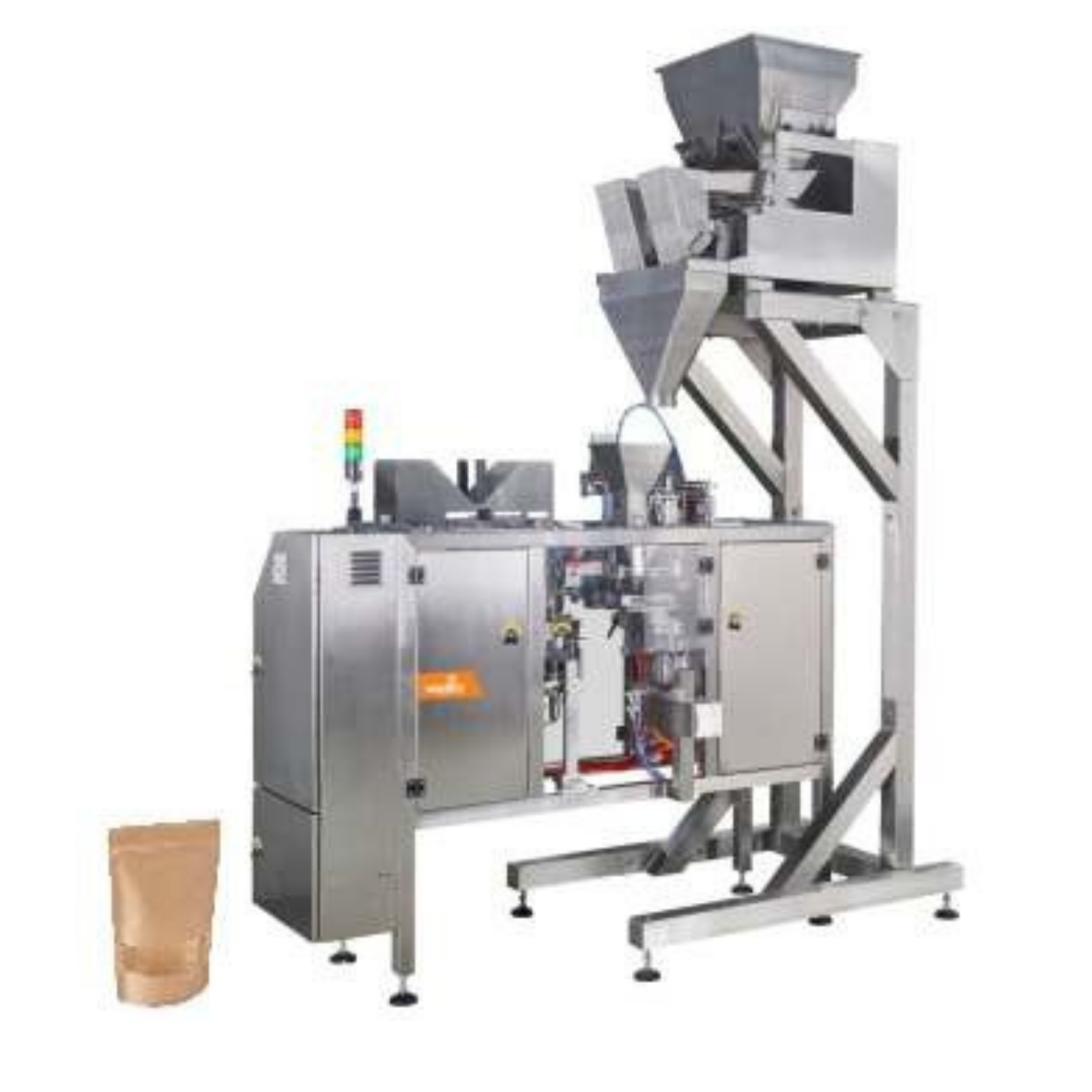

AUTOMATIC PICK FILL & SEAL MACHINE
Sepack’s Pick, Fill & Seal machines are designed for pre-made pouch filling applications in the food, personal care and pet Food industries. It’s ability to handle wide range of Pouches with quick changeover makes it unique. These machines are suitable to convert your Semi-automatic / manual operation to highly efficient Packaging Operation. It is also best suitable for organizations requiring multiple changeovers and packaging a wide variety of Products. Sepack’s Pick Fill Seal machines delivers format changeovers in less than 30 minutes. Just by selecting a recipe from the HMI, the machine will adjust itself to the appropriate format settings, saving both time and money while increasing productivity.

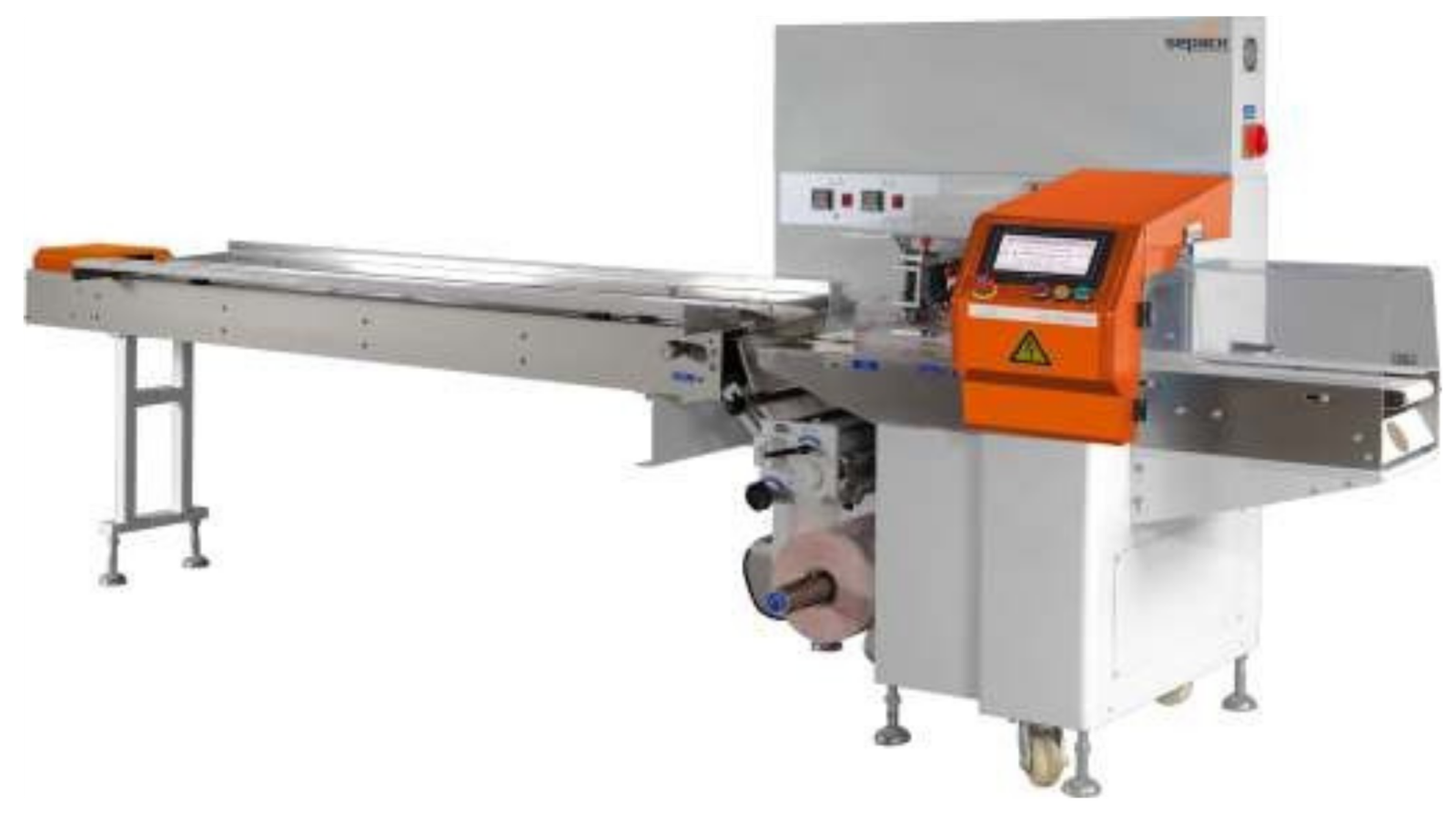

FLOW WRAPPING MACHINE
Flow Wrapping, or Horizontal Form-Fill and Seal (HFFS) is the process of making a horizontal bag from a single roll of film. Heat is applied to the bottom and ends of the film to form a sealed, flexible package already filled with products. Flow wrap packaging is used for a variety of products from food and bake goods to regular household items and stationary. These machines are customized according to the product dimensions and output requirements. It comes with HMI controlled by PLC and Servo/Frequency drives. Sepack offers both rotary and box motion sealers to match with the product specifications.

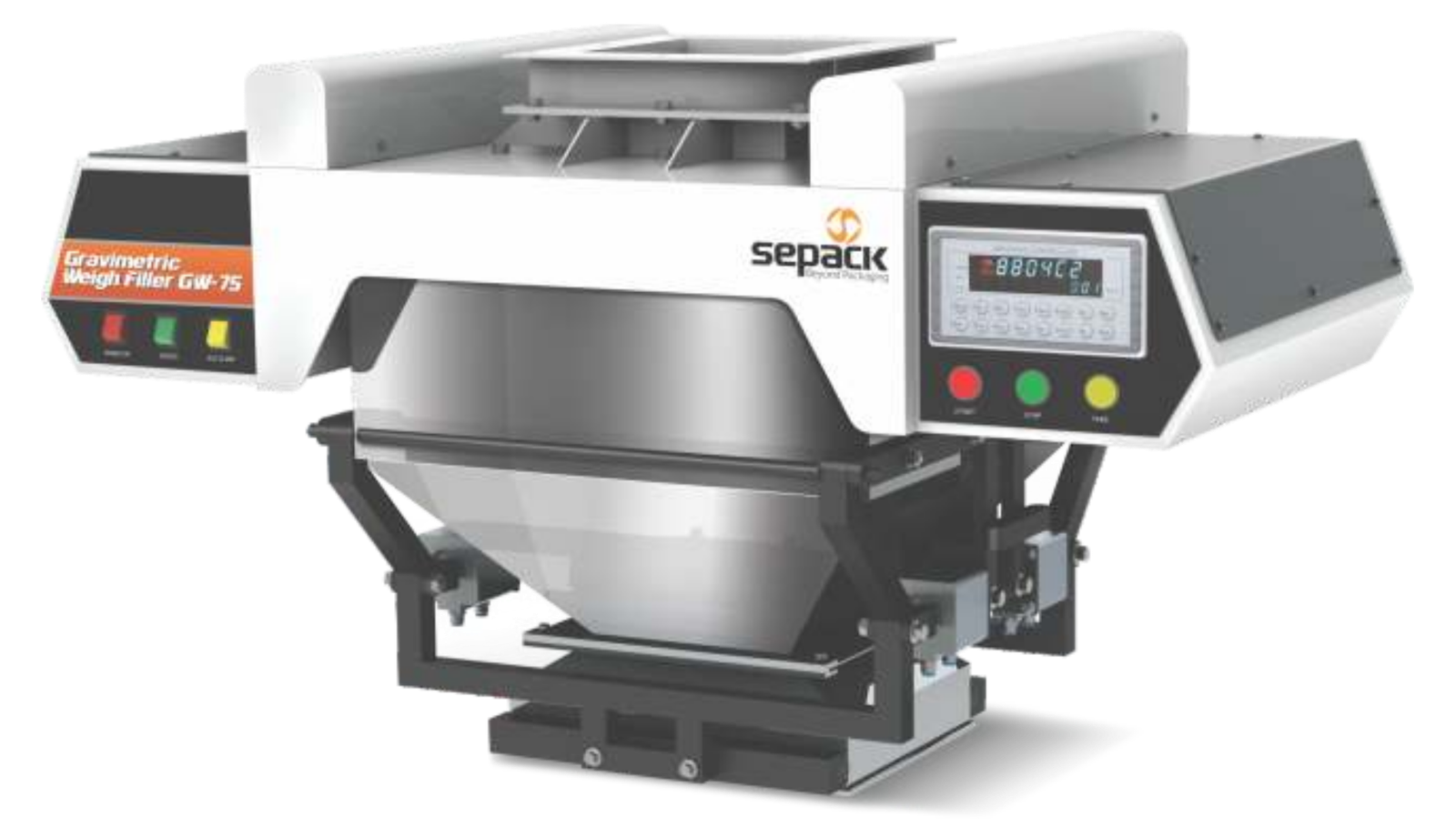

GRAVIMETRIC MULTI PRODUCT BAGGING MACHINE
Gw75 is an entry level design to gross weigh fillers. These machines are used for semi-automatic bag filling of free flowing granular products. GW75 provides fast and accurate filling of open mouth bags. Compact design with dual load cells eliminates inaccuracies inherent in single load cell designs. These machines can be fixed to low dispensing silos.
GRAVIMETRIC MULTI PRODUCT BAGGING MACHINE
Gw75 is an entry level design to gross weigh fillers. These machines are used for semi-automatic bag filling of free flowing granular products. GW75 provides fast and accurate filling of open mouth bags. Compact design with dual load cells eliminates inaccuracies inherent in single load cell designs. These machines can be fixed to low dispensing silos.

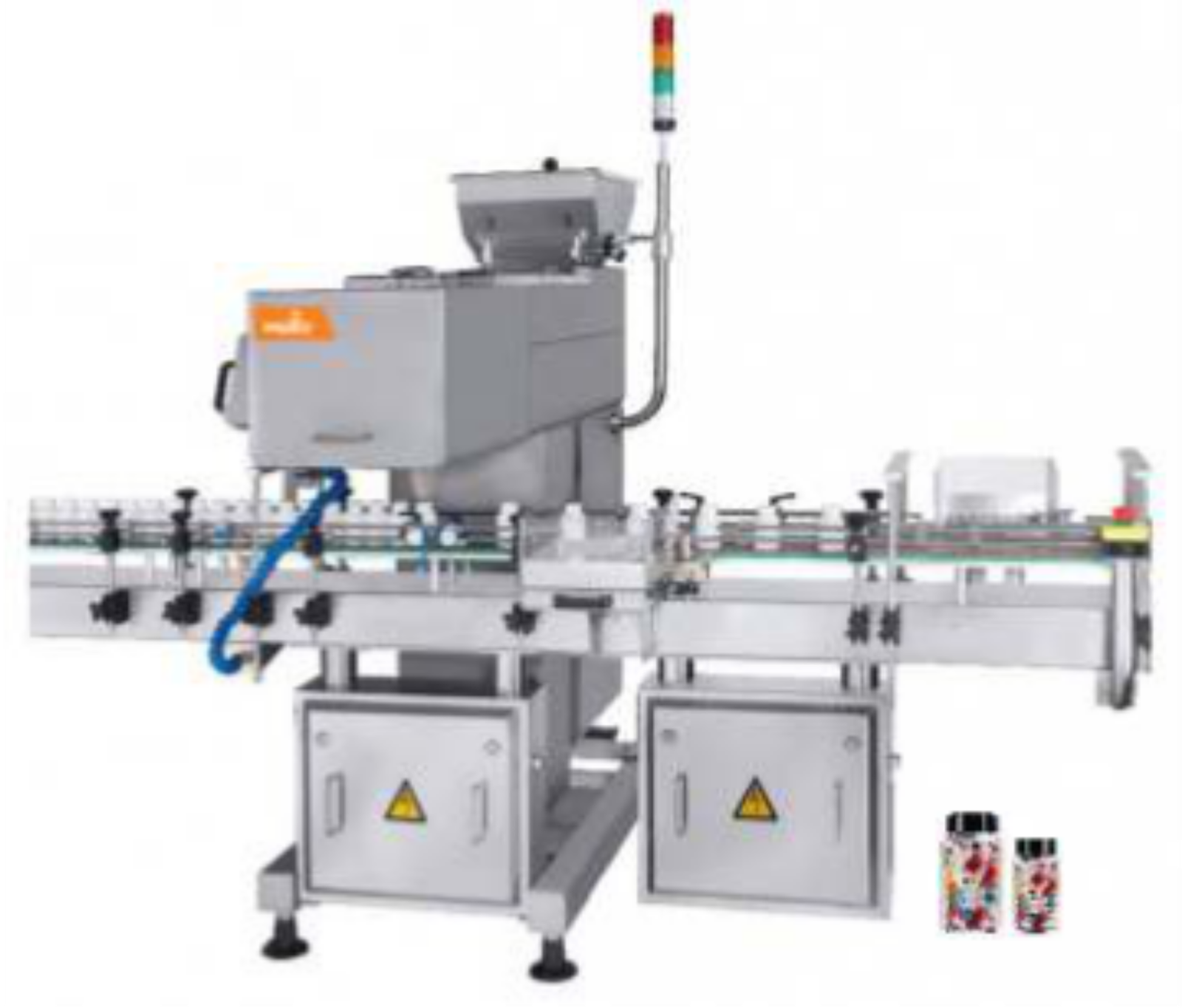

CAPSULE/TABLET COUNTING & FILLING MACHINE
Sepack’s tablet counters are reliable, high performance machine, designed in conformance with current and proposed GMPs. Having a small footprint, they are effective in maintaining the integrity of a clean room environment. Few change parts are needed for different container sizes (only the nozzle). All product contact parts are made of type 316 stainless steel. And all contact parts can be easily disassembled for cleaning.

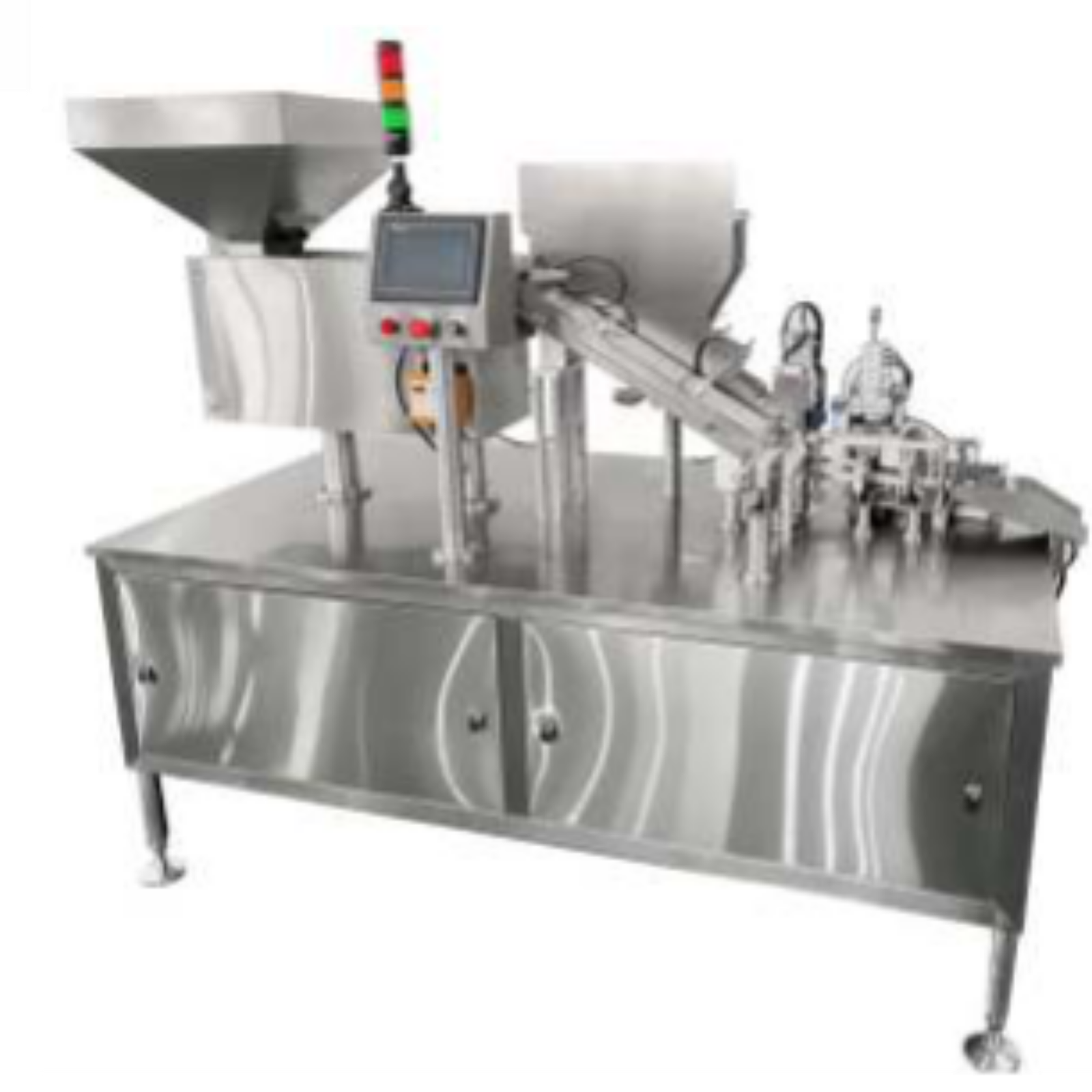

EFFERVESCENT TABLETS PACKING MACHINE
Sepack’s Effervescent tablets packing machine is suitable for packing effervescent tablets into individual tubes. All of the equipment adopts programmable controller, optical fiber, photoelectric detection, etc. which has stable performance and reliable operation, and can be operated automatically. The contact part of the equipment and tablet is made of 304 or 316 high quality stainless steel, which is in full compliance with GMP requirements. It is the most ideal equipment for pharmaceutical & health care product factories.

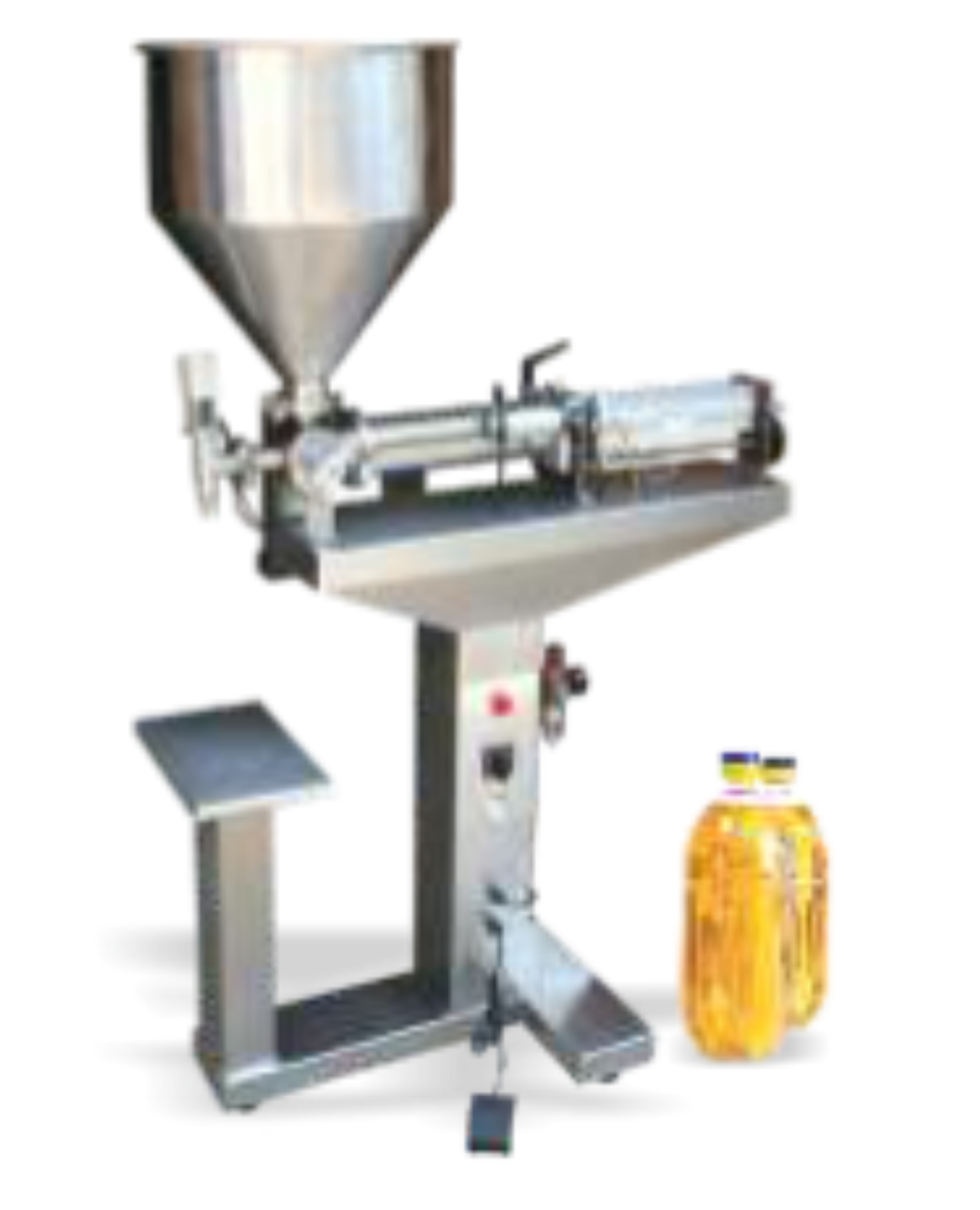

Semi Automatic Paste filling Machine GCG-BL
Semi Automatic Filling machine for filling thick fluids and pastes.
Features:
I Pneumatically activated piston with step less adjustment for volume I Simple and compact structure I SS construction, easy to wash I Filling volumes 100 ml ~ 1000 ml I Outlet nozzle equipped with valve to avoid dripping I SS storage hopper I Manual and auto modes I Speed: 1 0 ~ 15 d o z e s / min I Accuracy – + / – 1 %

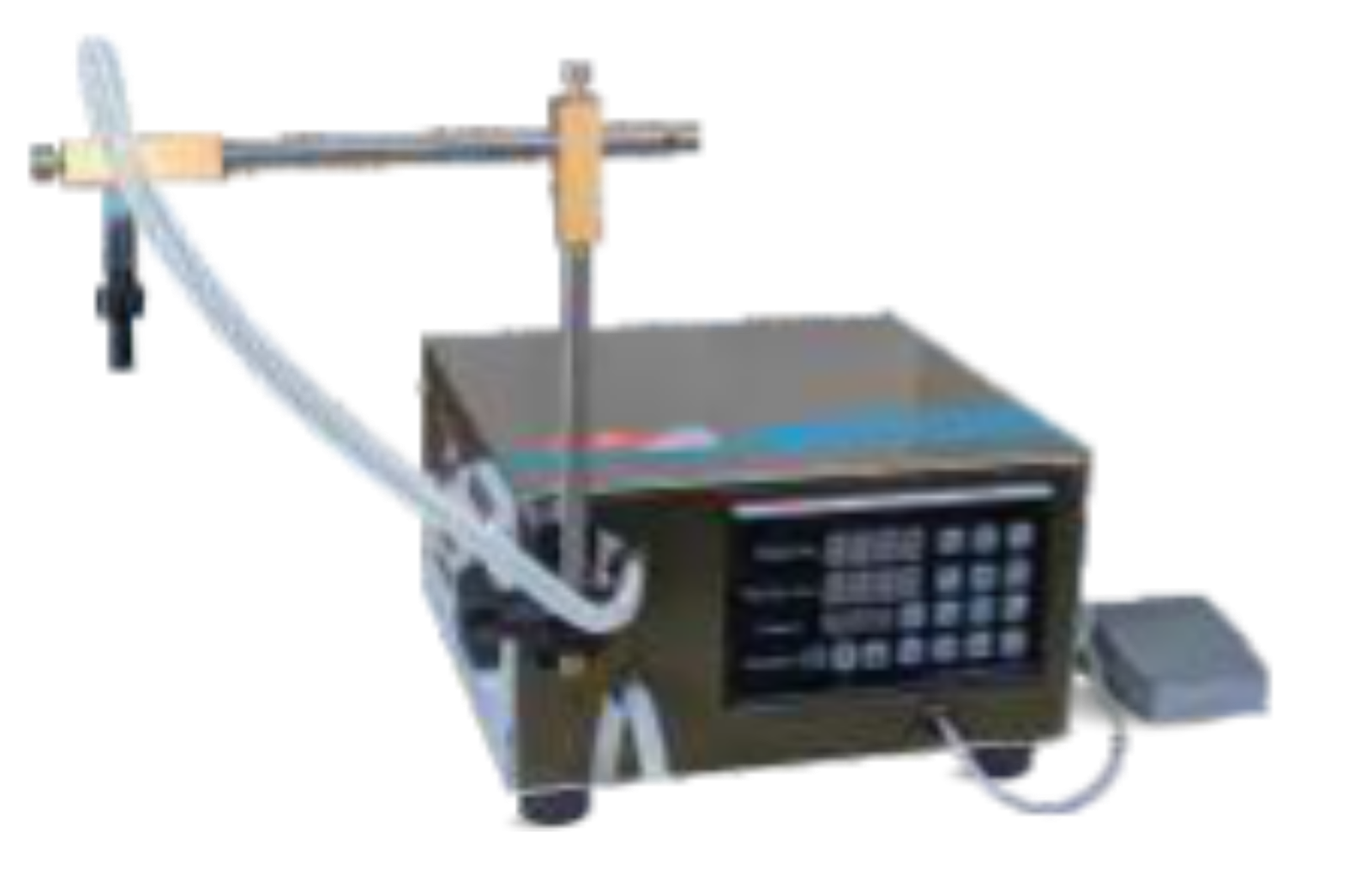

DIGITAL CONTROL LIQUID FILLER SINGLE HEAD (YT180-1)
- Minimum Filling Range: 10 mL
- Approx Time to Fill 1 litre: 30 Sec
- Variation (Approx) : 3% of Set Volume at 99 Speed Power
- Consumption: 30W at 240VAC

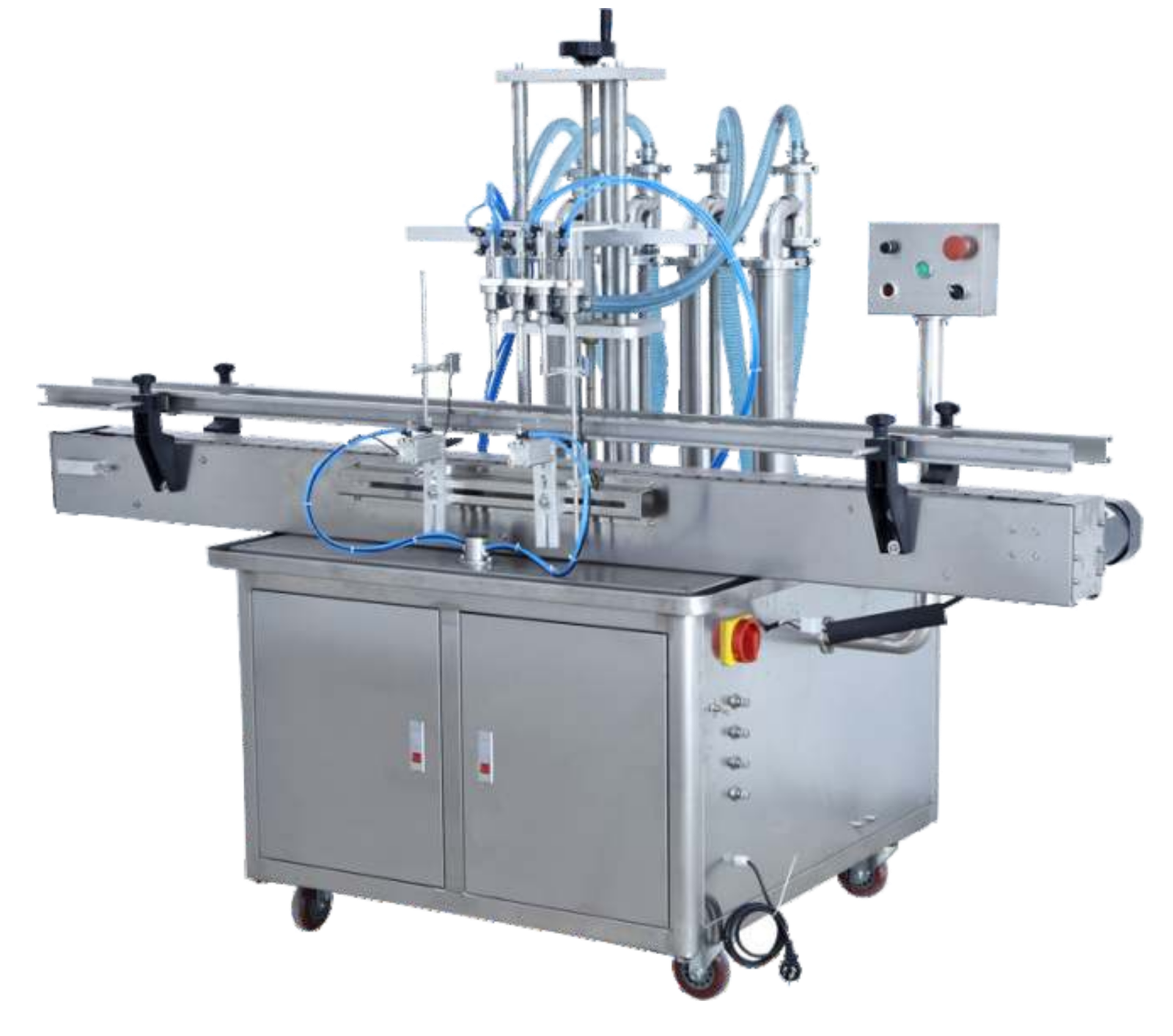

LIQUID FILLING MACHINE
Sepack offers both Semi-automatic and fully automatic filling machine suitable for wide range of products including free flowing liquids/creams/high viscous products etc. and of different bottle/CAN/Jar sizes. We offer our filling from 5ml – 10Ltr
Sepack design automatic and semi-automatic liquid filling for various industries. Our liquid packaging machine product line consists of standard and custom configurations in order to perfectly fit the specifications of your application — container size, liquid type, container shape, automation implementation and integration, and more. We offer filling from 5ml – 10Ltr. To achieve maximum effectiveness, automation should go hand in hand with customization. With an automatic liquid filling machine tailored to the requirements of your operations — vessel size, shape and weight, liquid volume required, liquid properties, equipment footprint, and more — you can be assured of the greatest possible accuracy in your automated filling processes.

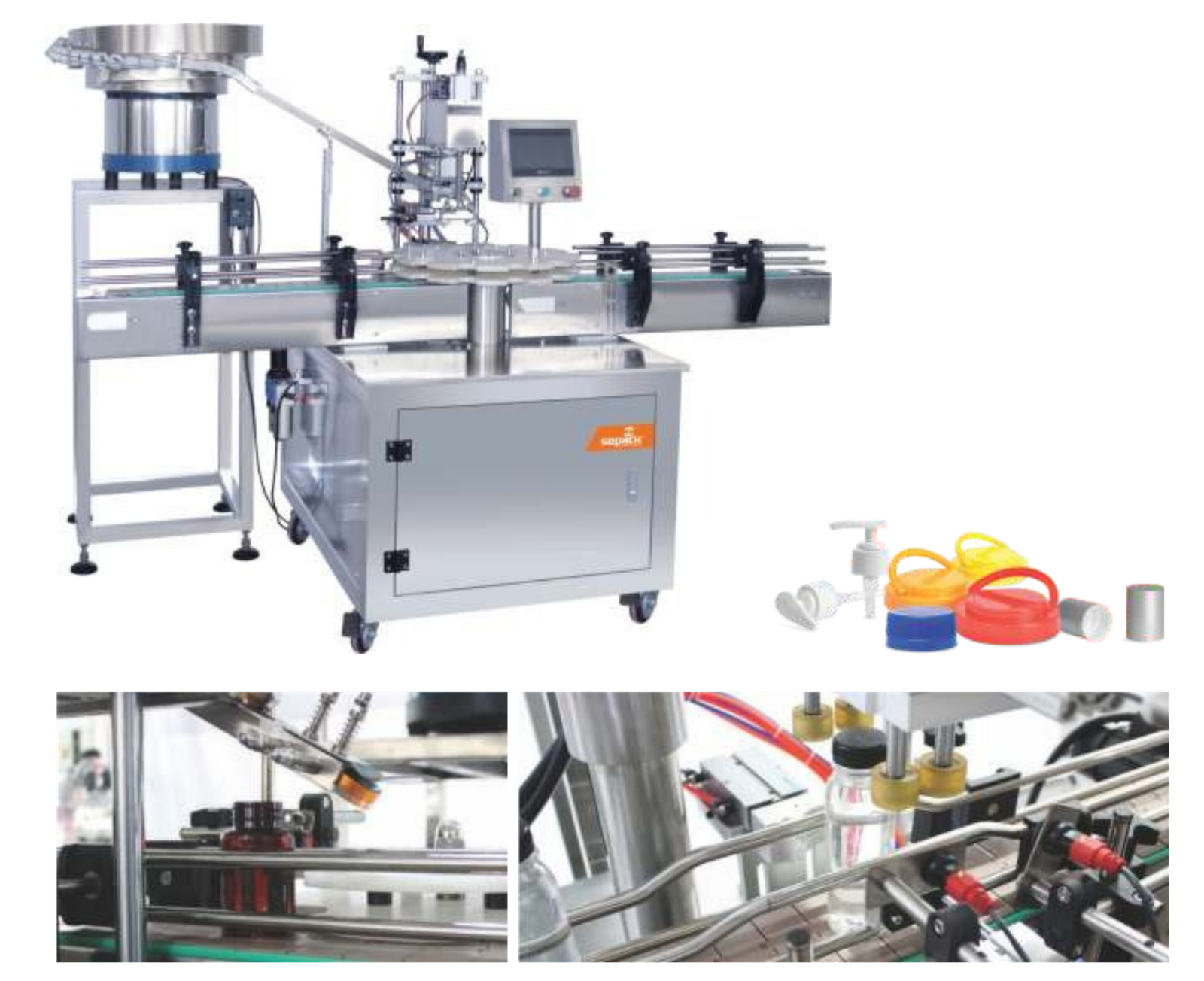

SEPACK’S CAPPING SOLUTIONS – Economy Series
- Suitable for Screw, Press & ROPP cap sealing
- Maximum output speed: Up to 40 caps per minute
- Smooth and accurate container handling
- Integrated fault & alarm system
- 7” Colour Touch Screen with PLC for control and error display
- Adjustable conveyor guide rails for different products
- No Bottle – No Capping system
- Available in Single Head & Multi Head options
- Suitable for Jars & Bottles (Glass / Plastic)
- Compatible with Round, Flat & Elliptical containers
- Container Size: Diameter 22–100 mm, Height 50–210 mm
- Cap Size: Diameter 30–150 mm (change parts required)
- Conveyor Height: 750–850 mm (adjustable)
Applications: Pharma, Dairy, Chemical, Pesticides, Beverages, Food & Oil, Personal Care
- Output depends on container and cap size
- Specifications can be customized as per requirement

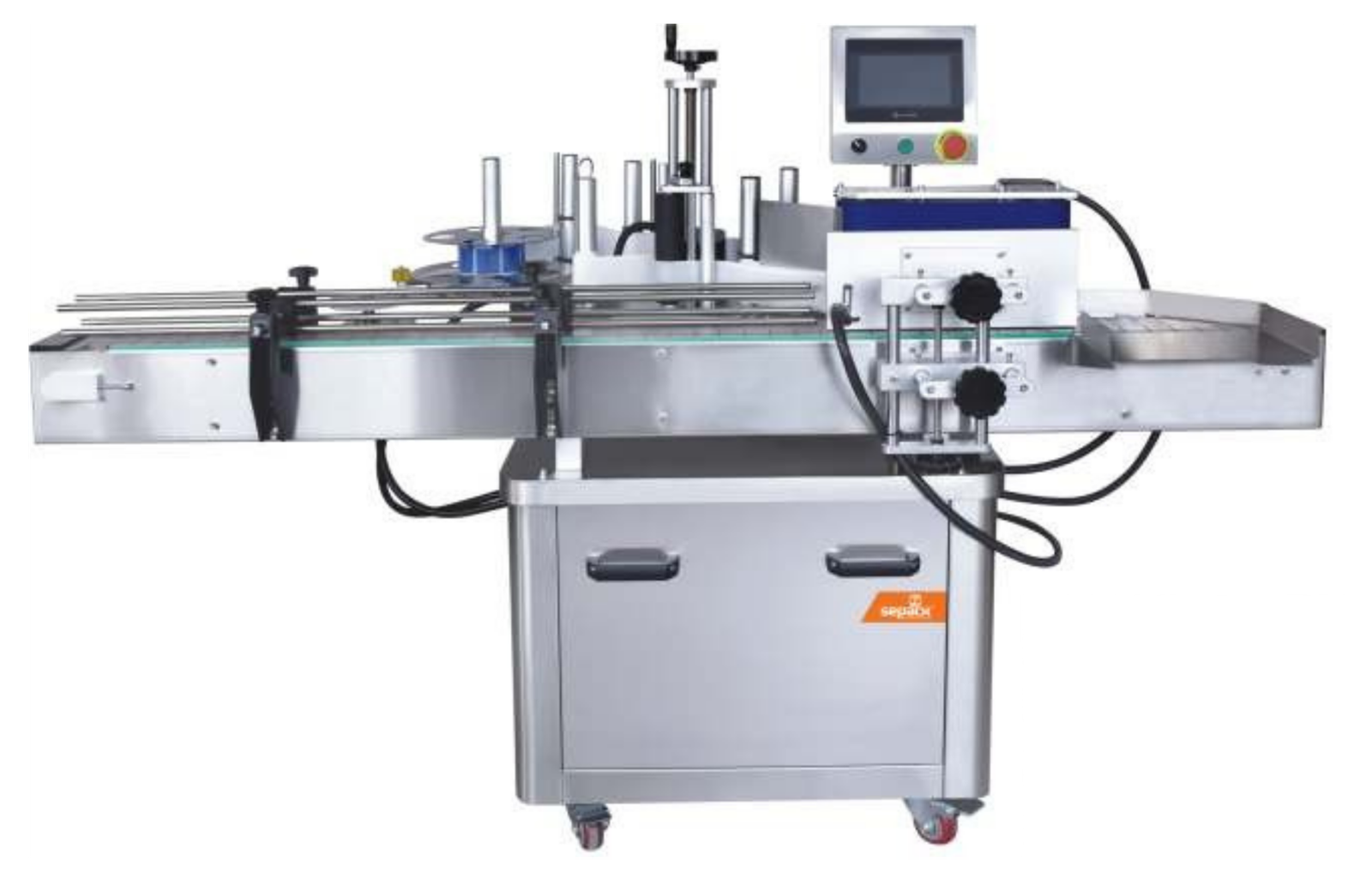

SEPACK’S LABELLING MACHINE – Economy Series
- Available for Single Side, Double Side & Wrap Around labelling
- Suitable for Bottles, Cans & Jars
- Compatible shapes: Flat, Round & Elliptical containers
- Materials: Glass / Plastic / PET / Tin / Corrugated containers
- Direction: Left to Right / Right to Left
- Output Speed: 40 – 150 per minute*
- Construction: Stainless Steel
- M.S Feature
- No Product – No Label system
- Label Missing Detection – machine stops / rejects container
- Built-in Product Counter
- PLC, Servo & HMI Controlled
- Power Supply: Single Phase, 230V, 50Hz
- Unscrambler: Optional
Applications: Pharma, Dairy, Chemical, Pesticides, Beverages, Food & Oil, Personal Care
- Output depends on container and label size
- Specifications can be customized

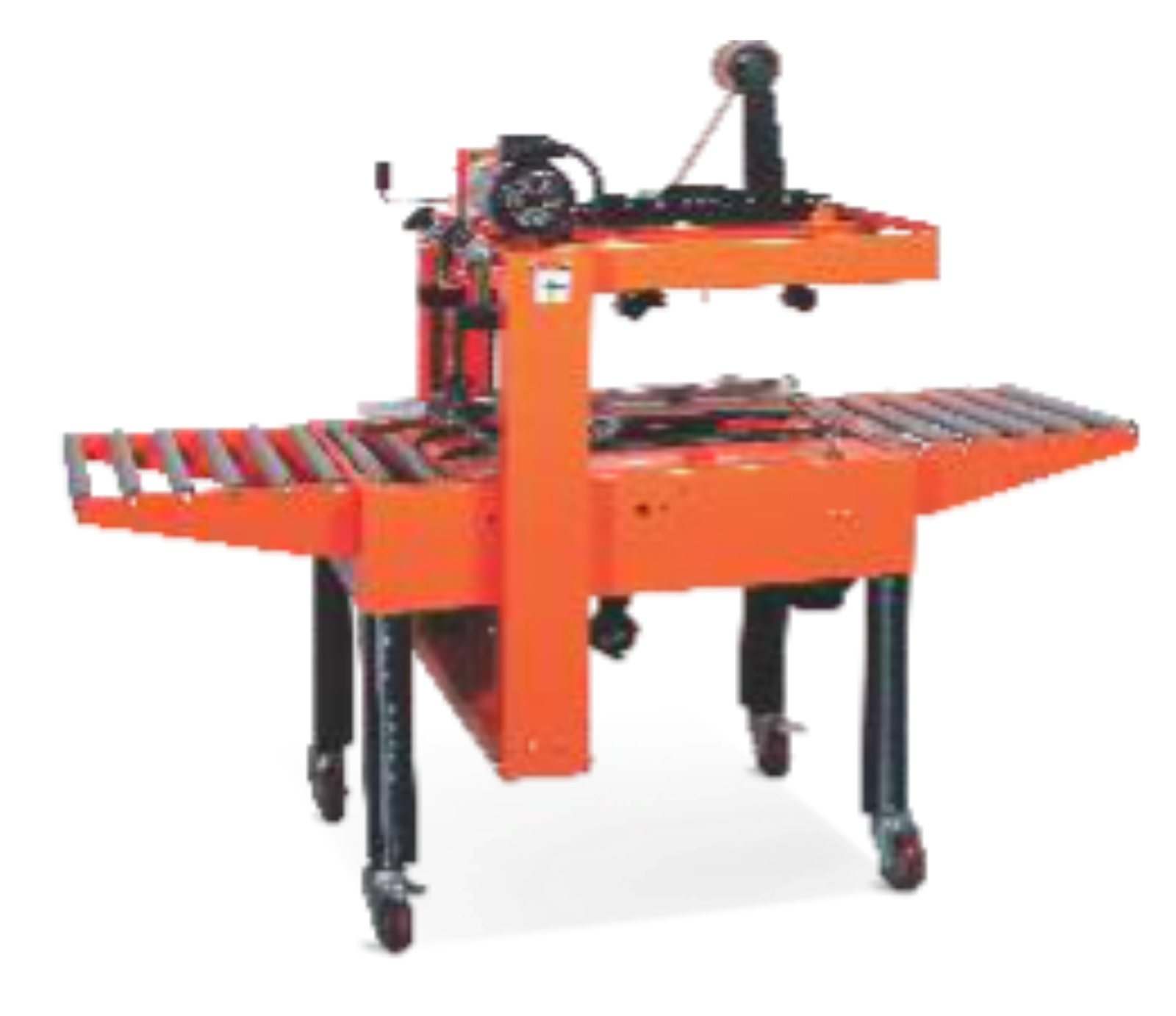

CARTON SEALER
This machine is used for top and bottom sealing of carton (secondary) boxes using BOPP tapes.
Features:
I Used for wide range of carton dimensions I Easy to change carton sizes I Roller conveyors at input & output side I Adjustable conveyor height I Special belt conveyors giving firm grip I Carton Holding rollers I Mounted on castor wheels
Technical Specifications
- Model: SCT
- Power Supply: 240VAC / 50Hz / 400W
- Dimensions (L × W × H): 1620 mm × 790 mm × 1610 mm
- Weight: 80 kg
- Conveyor Height: 640 mm – 730 mm
- Conveyor Speed: 19 m/min
- Minimum Pack Size (B × H): 180 mm × 130 mm
- Maximum Pack Size (B × H): 450 mm × 470 mm
- Tape Width: 48 mm – 57 mm (76 mm optional)
- Tape Type: BOPP / PVC self-adhesive tape

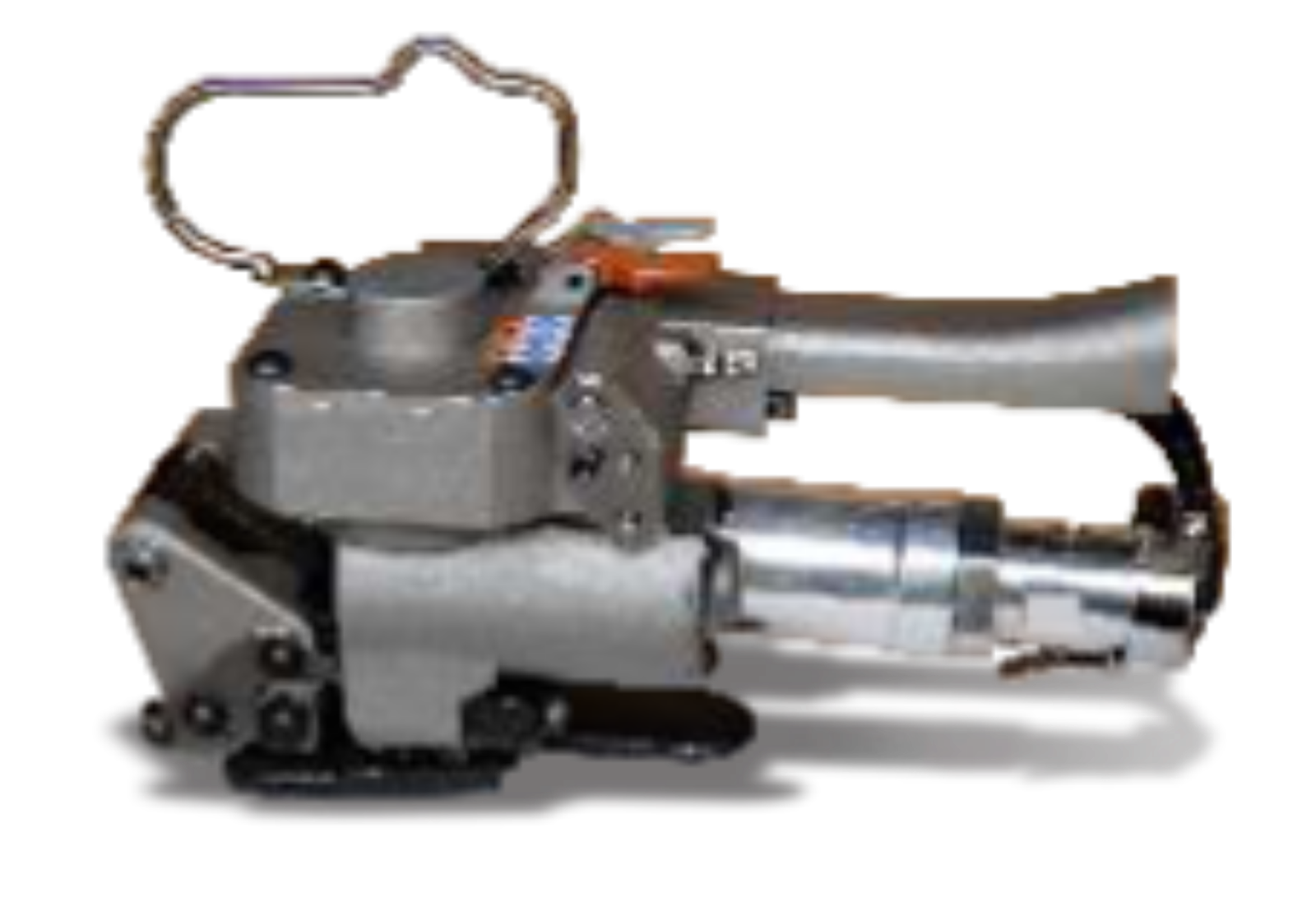

PET STRAPPING MACHINE
PET straps replaces conventional steel straps in almost every other strapping applications. Sepack’s Pneumatically operated PET strapping tools are gadgets for easy, economical and convenient sealing of PET straps. Widely used in paper, aluminum, steel, wood, wooden packaging, cotton, metal products and so on.
Features:
I High-power pneumatic design, light weight body and easy to use I Without fasteners, using friction hot melt, the interface is beautiful and strong I High degree of automation, taut and strong welding shell controllability I Large tightening force and special structure design to achieve tightening and packaging easily. Such as the materials of steel, aluminum ingots, heavy packaging I The tool is durable, adopting high-strength alloy materials for the body and components, high reliability design, and advanced manufacturing technology I Safe for use, fatigue-free design
TECHNICAL SPECIFICATIONS
- Strap Type: PET / PP
- Strap Width: 13 mm – 19 mm
- Strap Thickness: 0.5 mm – 1 mm
- Tension Force: 2500 N
- Sealing Method: Friction Weld Joint
- Air Pressure Requirement: 0.5 – 0.7 MPa

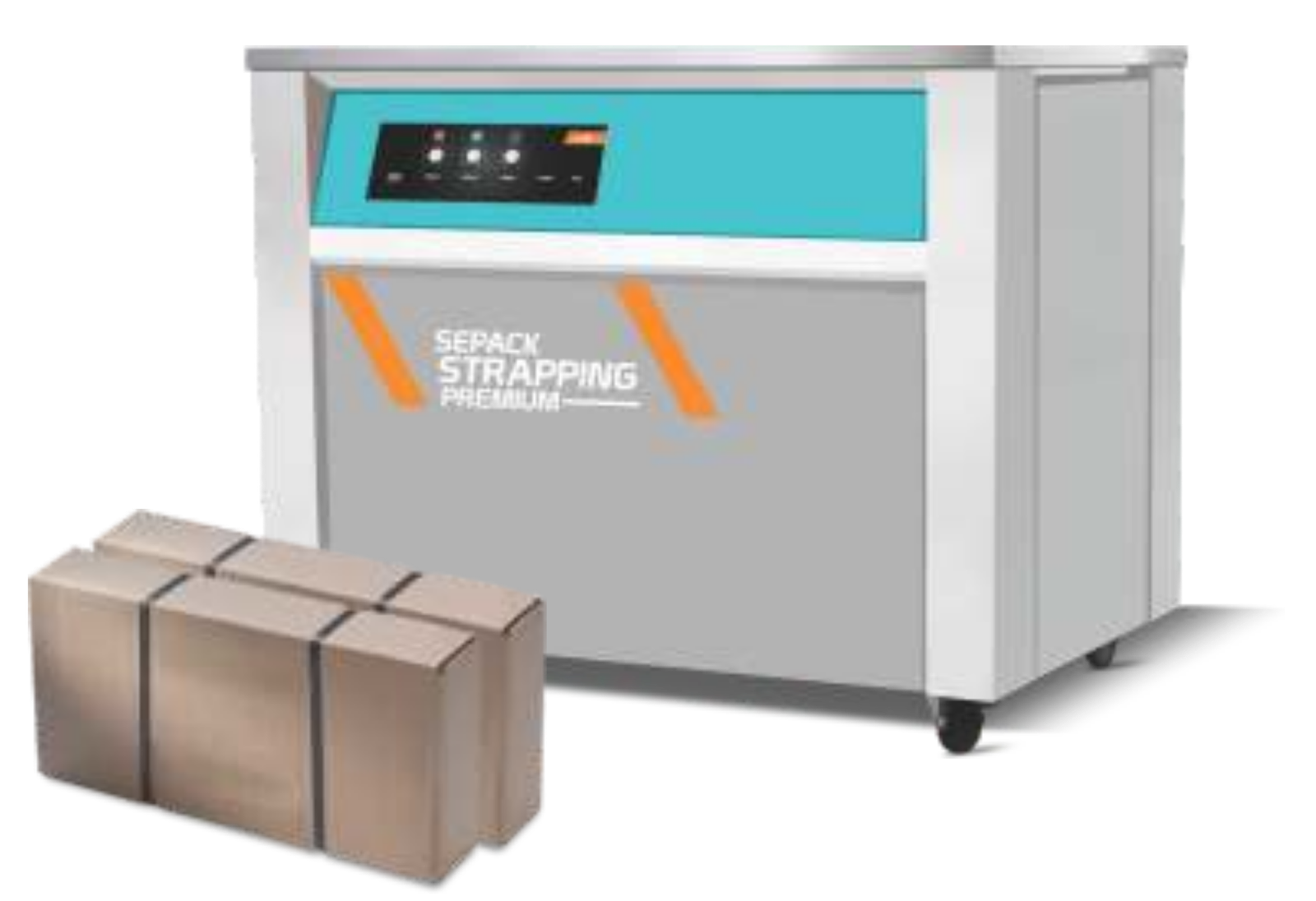

BOX STRAPPING MACHINES
It is used for strapping secondary cartons, containers, wooden boxes etc. with PP / PE straps. Two models available viz. High Table model and Low Table model.
Features:
Easy to use I Adjustable strapping tension I Adjustable strapping temperature I Adjustable feed length
TECHNICAL SPECIFICATIONS

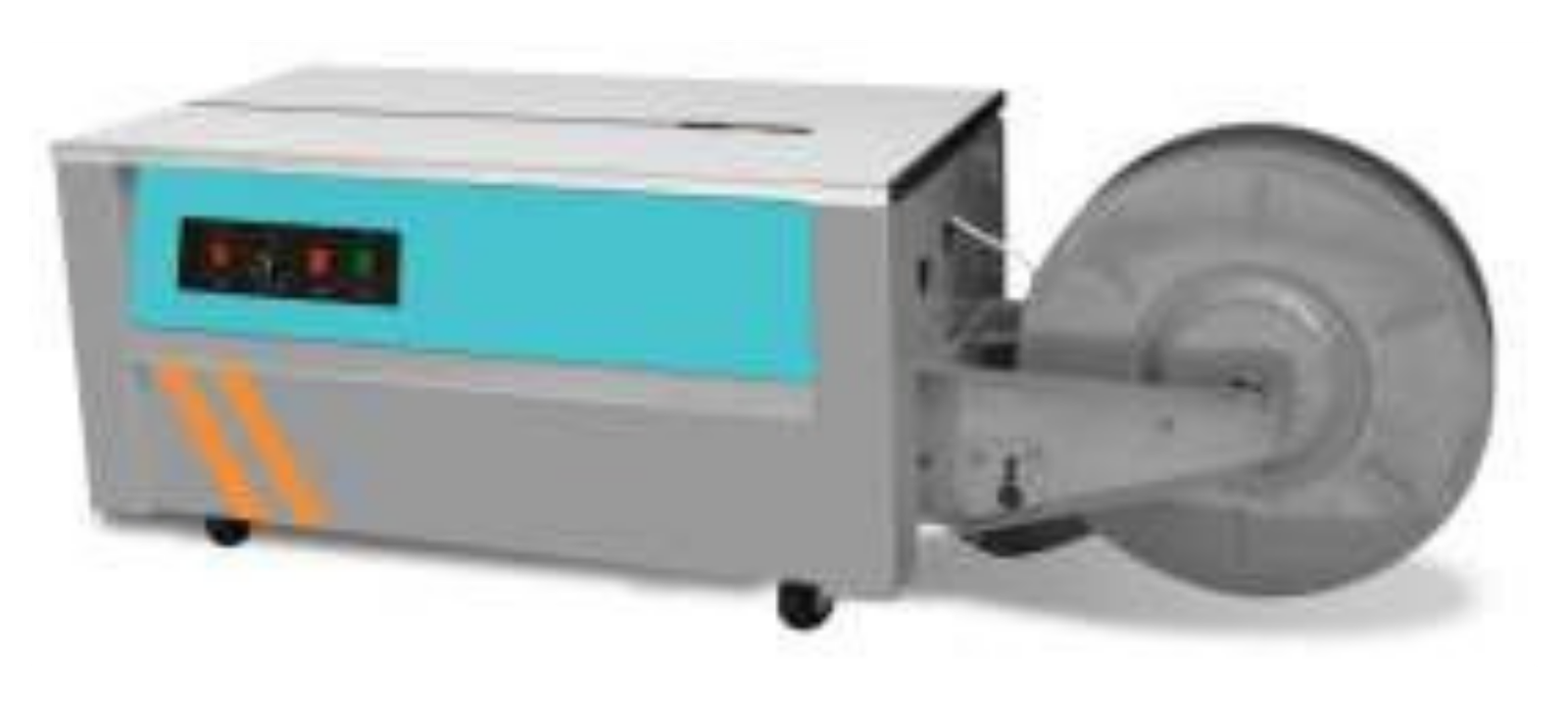

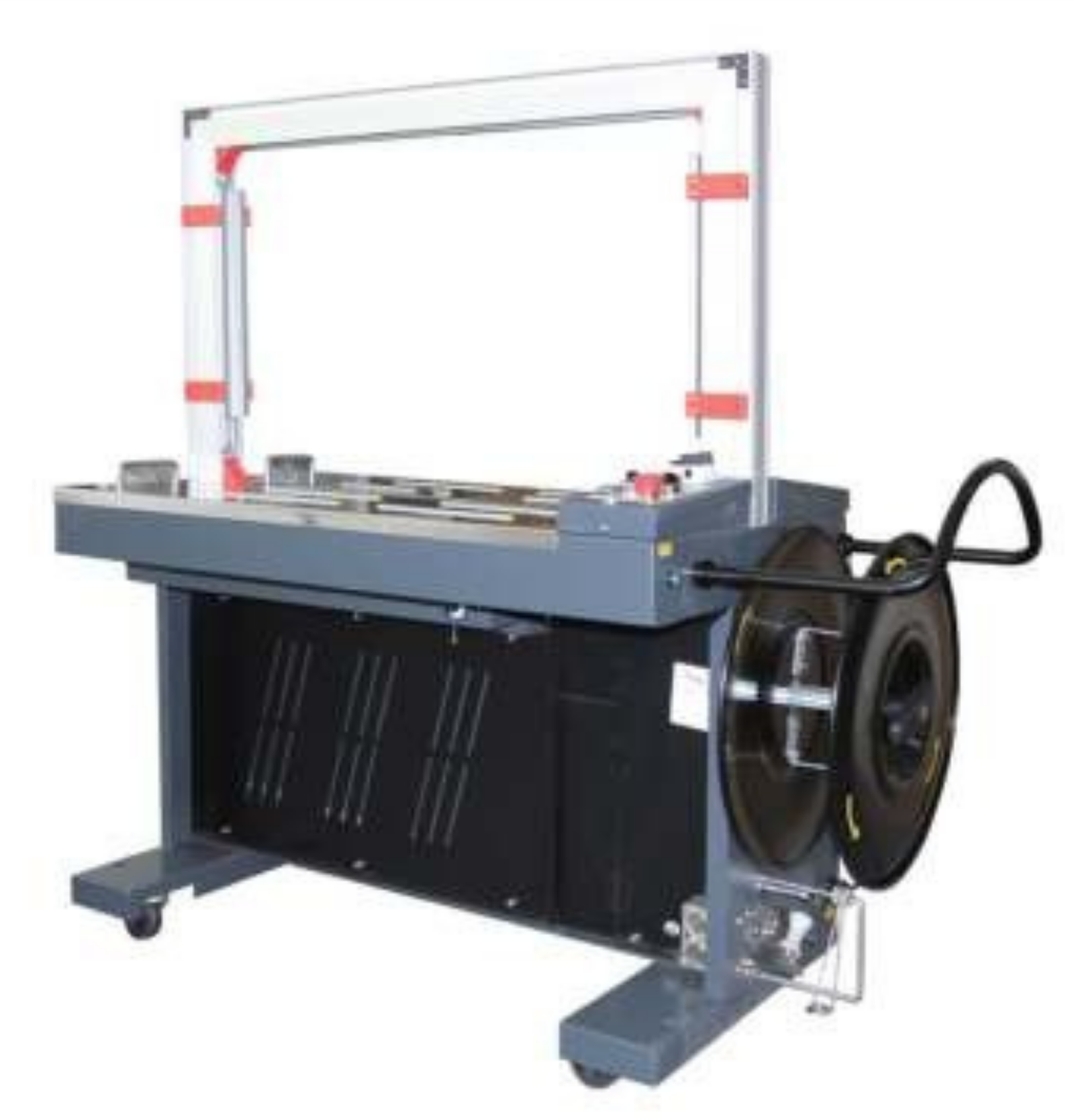

Model | SSP | SSP LT | MHX-201 |
Supply | 240VAC / 50Hz | 240VAC / 50Hz | 240VAC / 50Hz |
Power Consumption | 250W | 250W | 400W |
Machines Dimension (LxBxH) | 897mm x 570mm x 785mm | – – – – – – – | 1400mm X 620mm X 1435mm |
Machines Weight | 72Kg | – – – – – – – | 180kg |
Strap Width | 6mm to 12mm | 6mm to 12mm | 9mm to 15mm |
Strap Thickness | 0.6mm to 0.8mm | 0.6mm to 0.8mm | 0.6mm to 1.0mm |
Cycle Speed (Avg) | 2.5 sec (Depending on Pack Size) | 2.5 sec (Depending on Pack Size) | 2.5 sec (Depending on Pack Size) |
Min Pack Size (LxBxH) | 100mm x 100mm x 100mm | 100mm x 100mm x 100mm | 100mm x 100mm x 100mm |
Max Pack Size (mm) | Virtually No Limit* | Virtually No Limit* | (B) 750 x (H) 550 |
Max Pack Weight | 100Kg (Max 23gms/cm²) | 100Kg (Max 23gms/cm²) | 100Kg (15gms/cm²) |

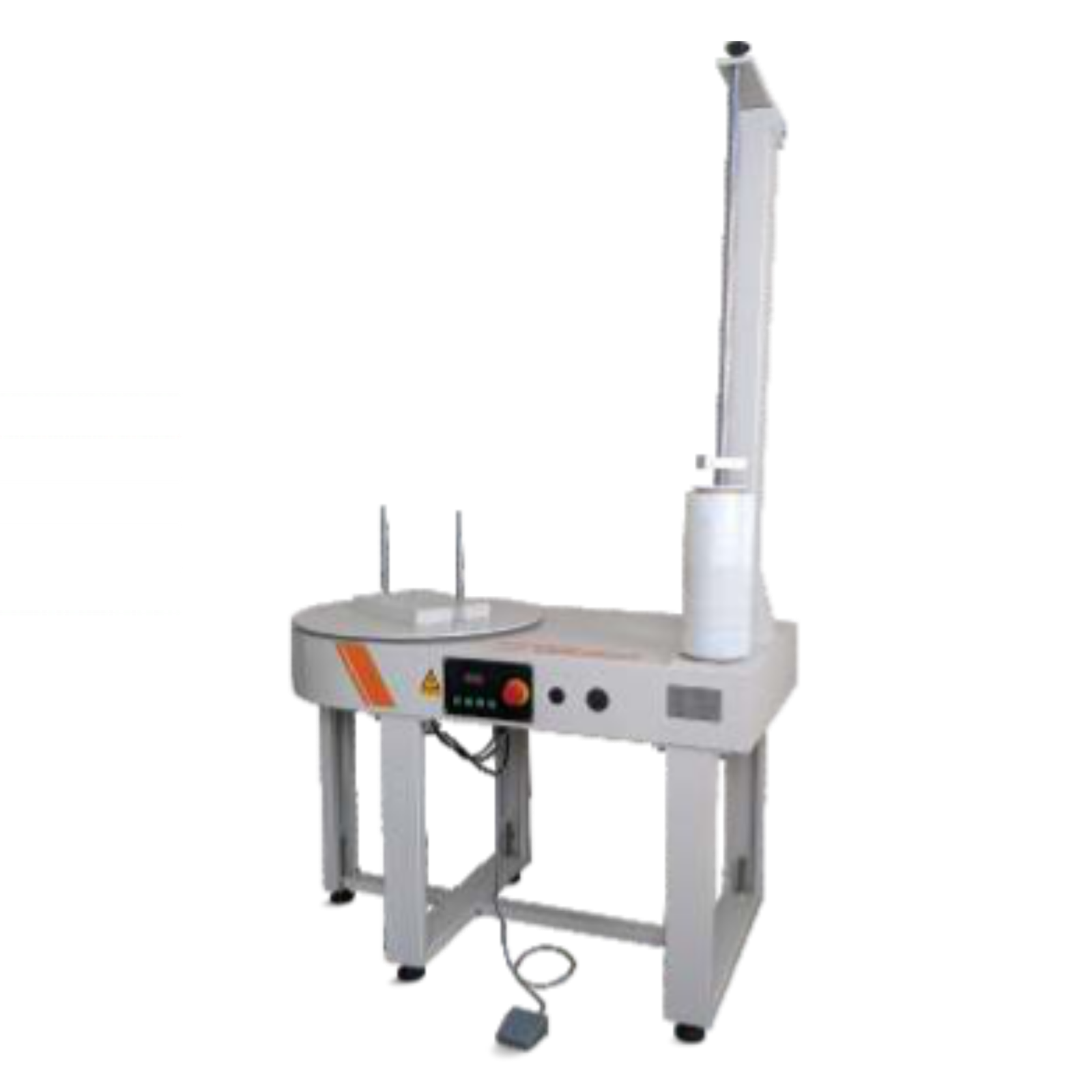

Semi-Automatic Stretch Wrapping Machine (DBC800)
Technical Specifications
- Suitable Box Width (Min): 215 mm
- Suitable Box Width (Max): 515 mm
- Maximum Box Weight: 40 kg
- Top Table Speed: 30 RPM @ 240VAC (Variable)
- Power Consumption: 120W @ 240VAC

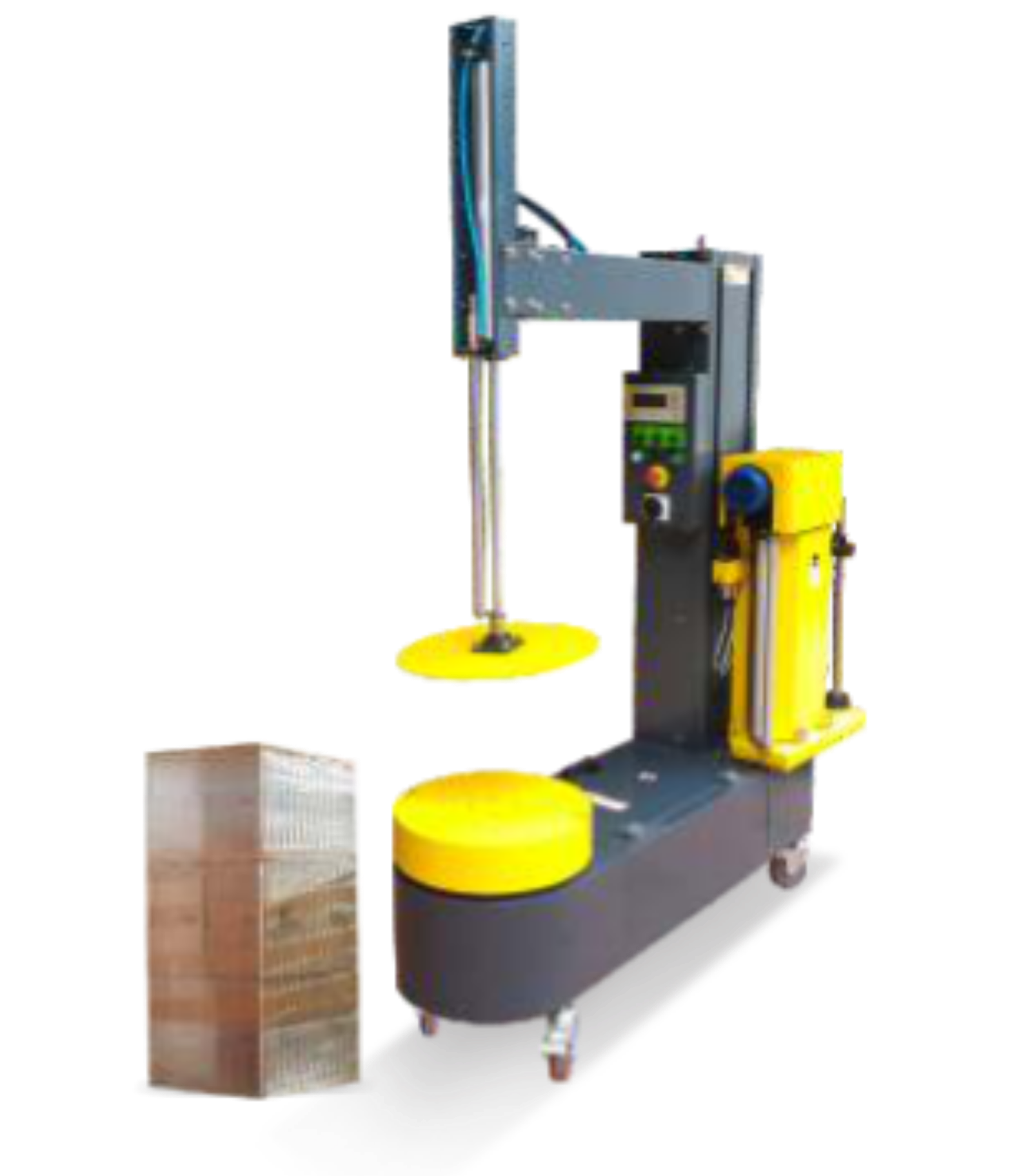

STRETCH WRAPPING MACHINE
Power pre Stretch – Box Wrapping Machine – MH-FG-800 B
TECHNICAL SPECIFICATIONS
Power Supply | 1P /AC220V/50Hz /0.75KW | Film Data: | |
Air pressure | 5kg/cm2～7kg/cm2 | Parameter of film | PE Stretch film |
Air consumption | 0.7m3/hr | Width | 12” or 16” |
Machine size | W470mm×L1510mm×H2110mm | Thickness | 17~25μm |
Speed of turntable | 20r/min (adjustable) | Outside diameter | ≤250mm, diameter of inside |
Product weight | Within 80kg | Paper core | 50~76mm |
Wrapping height | Height:300～820mm | Stretch rate | 100 %~300 % |
Product specification | Diagonal up to 1000mm | ||
Mode of outputting film | Pre-stretch with mechanical and power system |

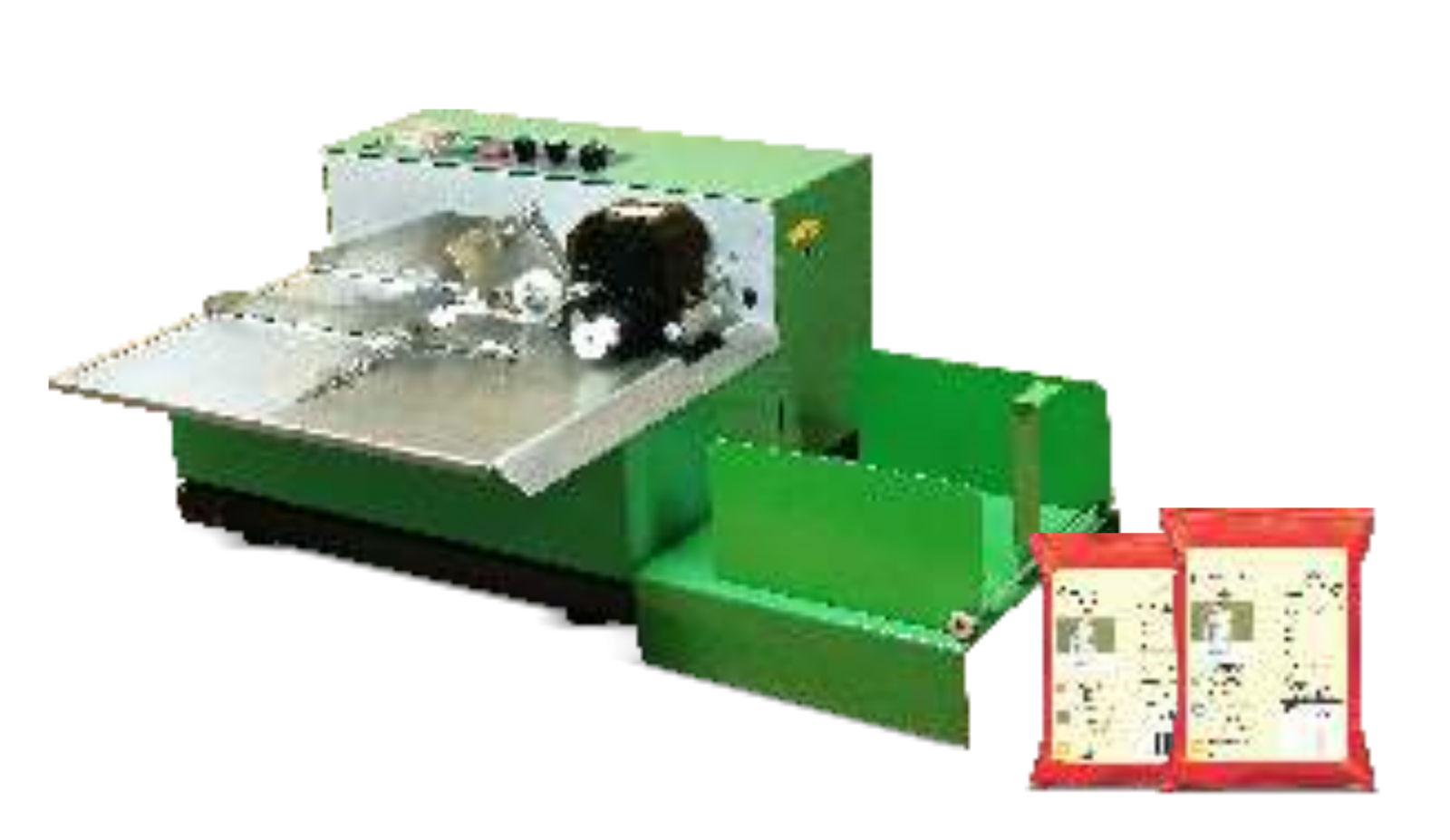

DRY INK CODER
BATCH CODING MACHINE
Ideal for printing statutory markings / coding on plastic / paper pouches, duplex boards / duplex cartons, labels etc.
Features
I Higher production speeds I Pouches / labels can be fed in batches I Uses hot melt ink I No ink spillage I No over inking I Lower coding costs, easy to compose messages I Equipped with print counter/ preset counter I Photo electric sensor for position adjustment I Print wheel adjustable
TECHNICAL SPECIFICATION
- Model: DIC 380W MS
- Power: 240 V / 180 W
- Print Speed: Up to 200 pcs/min
- Print Area: 5 lines × 10 characters each
- Object Size:
Length: 50 – 500 mm
Breadth: 15 – 320 mm - Type Sizes: 2 mm & 3 mm
- Ink Roller Size: 35 × 32 mm
- Dimensions: 440 × 475 × 285 mm
- Weight: 26 kg

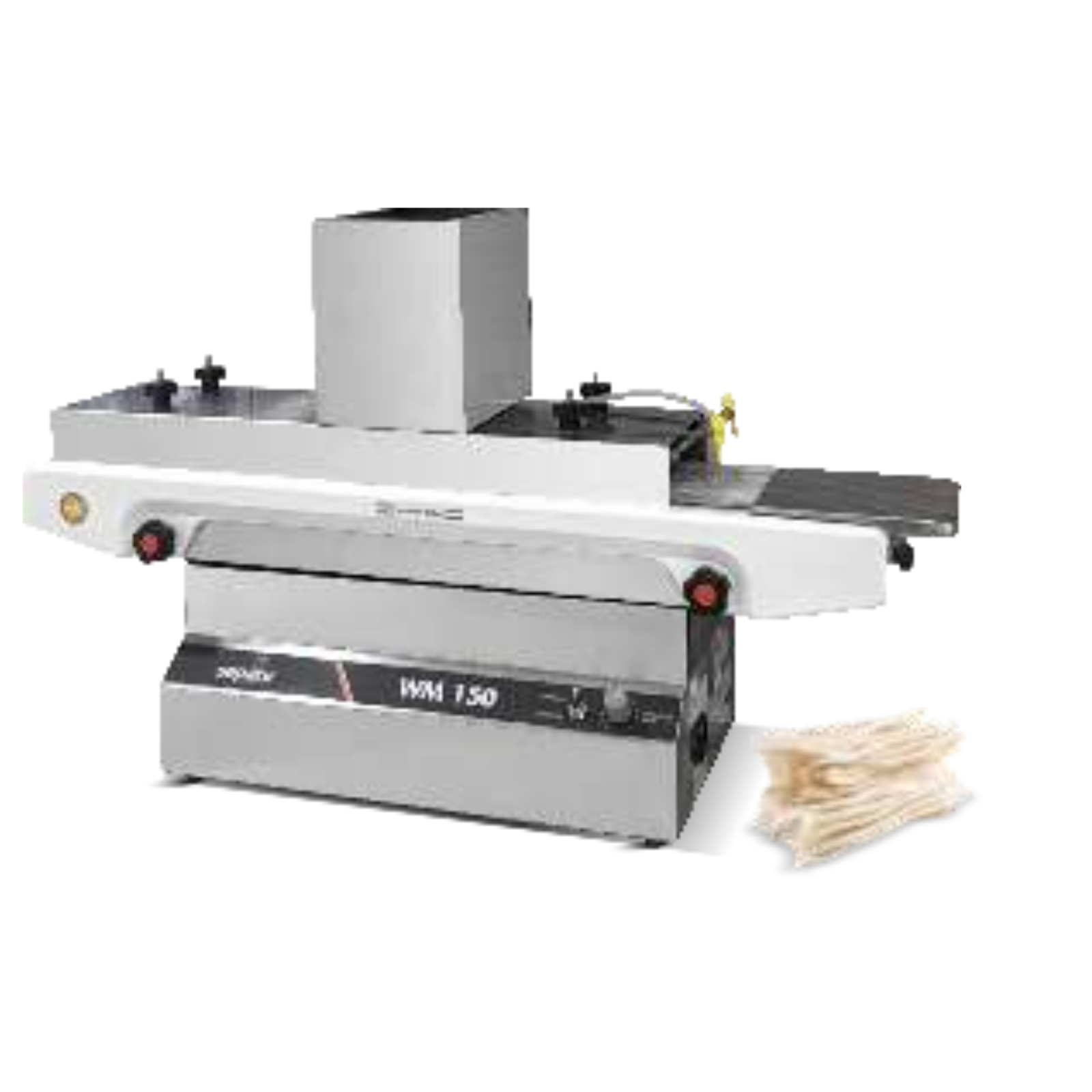

WICK MAKING MACHINE
Sepack’s wick making machine. It’s a semi-automatic machine used for the manufacture of long cotton wicks.
TECHNICAL SPECIFICATIONS
Model : | WM 150 |
Voltage : | 230V 50Hz |
Power : | 70W |
Productivity/Speed : | 50 pcs/min* |
Machine Body : | SS 409 |
Water dropping tank volume : | 5L |
Maximum length of wick : | 5 inch |
Maximum conveyor speed : | 14m/min |

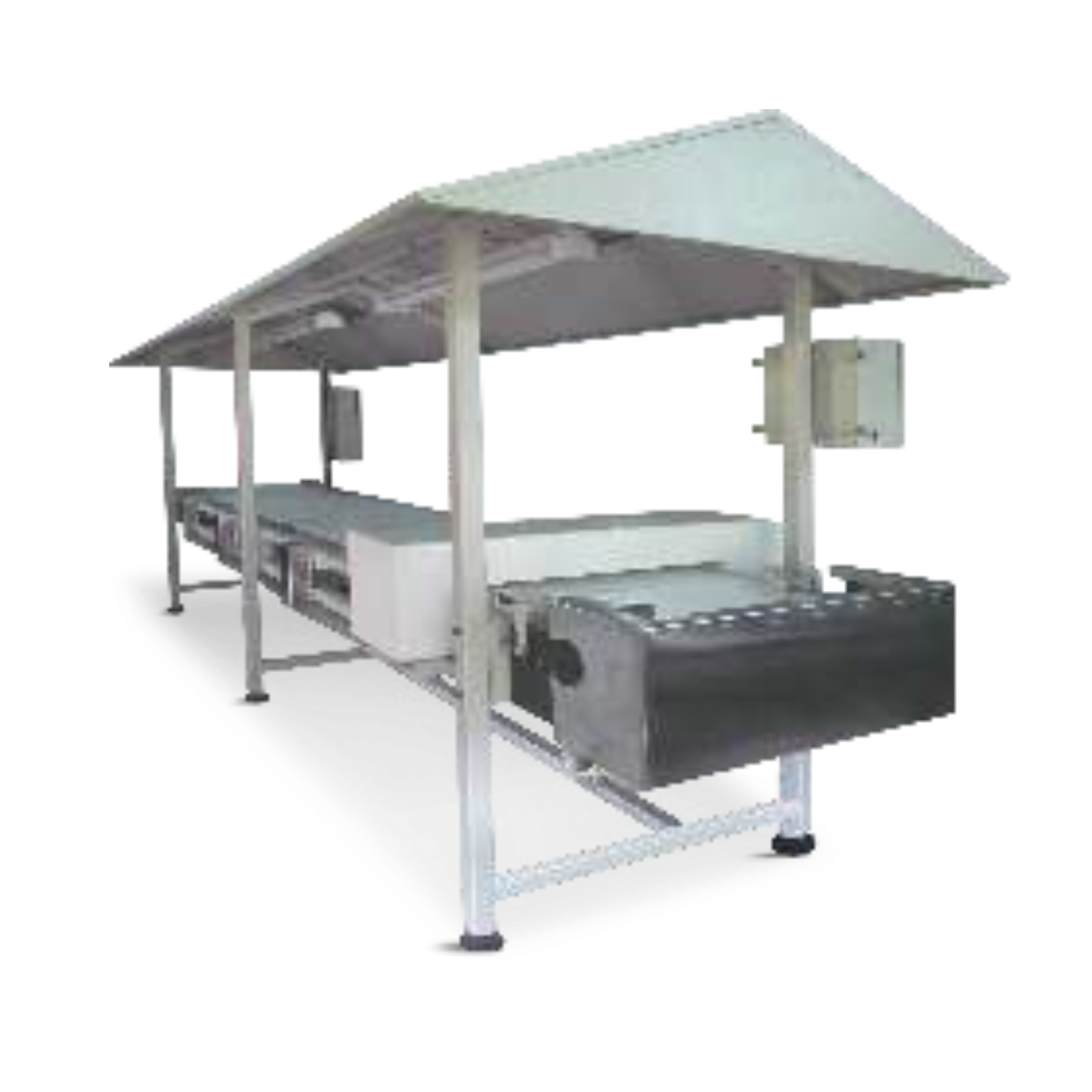

INSPECTION CONVEYOR / METAL DETECTION SYSTEM
The modern food safety guidelines demands many inspection systems including visual inspection conveyors and metal detection systems. SEPACK offers inspection conveyors of various sizes and types – custom made for meeting demands. Online and standalone metal detection systems are also offered.

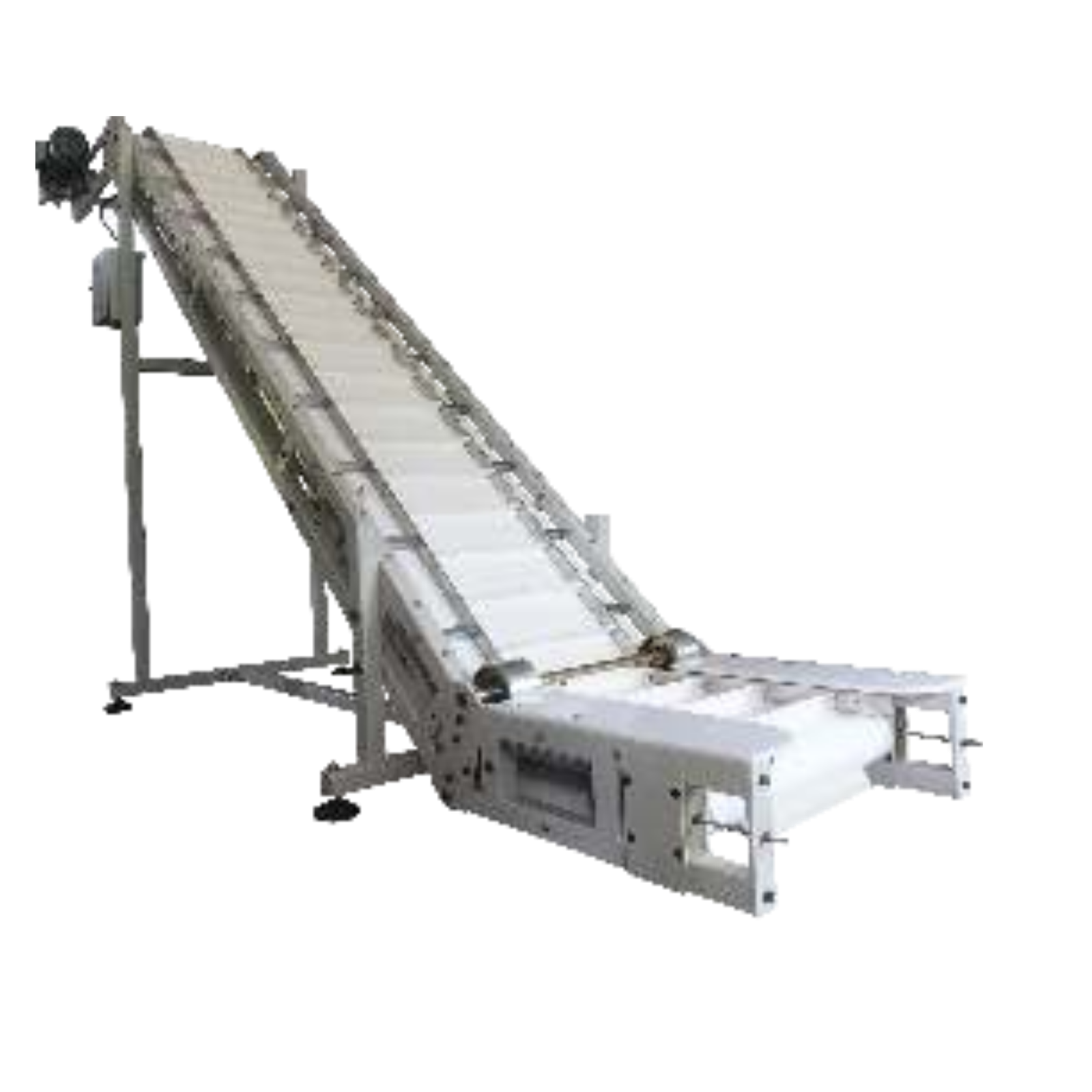

ELEVATORS / Z TYPE ELEVATORS
Elevators or Z type Elevators are meant to meet specific requirement of industry to elevate solids (granular) for processing or packaging. Sepack elevating conveyors, Z elevator conveyors are designed and built with utmost consideration to product safety. PVC food grade belts with horizontal cleats and side wall is being usually used, When cleaning of contact parts are taken into consideration in the design of systems– belt elevators are most ideal . AC single phase motors with gear box are being used as drives.
VERTICAL BUCKET ELEVATOR
Bucket elevators are one of the important material handling equipment used in a variety of industries. It is being used for conveying materials from a lower plane to higher plane for easy dispensing of free flowing materials. This is being used in conjunction with other machinery such as automatic weigher or packaging machine. The advantage of vertical bucket elevators are – High throughput & less requirement of floor area.

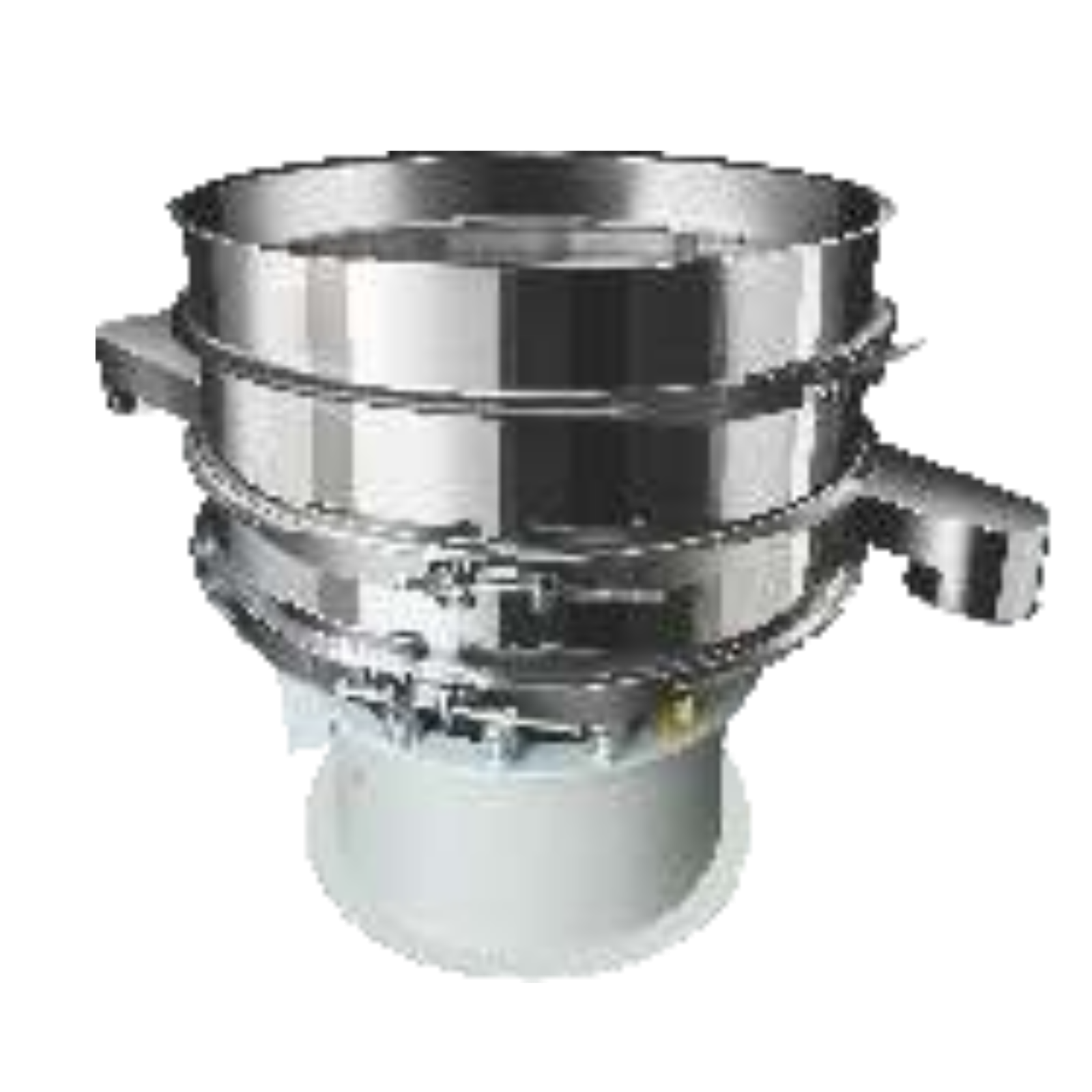

VIBRO SCREEN
VibroScreens / VibroSwifters are used for grading of dry and wet materials invaried industries. Our multi deck vibro screens are widely used in cashew industry to screen out the small impurities and broken grades from whole kernels. 36 inch (900mm) & 48 inch (1200mm) screens are used in multiple deck configuration. Apart form cashew , grains, pulses, powder screening options are available in the range.
